Class: QgsRasterLayerProperties¶

class qgis.gui.QgsRasterLayerProperties¶

Bases: QgsOptionsDialogBase

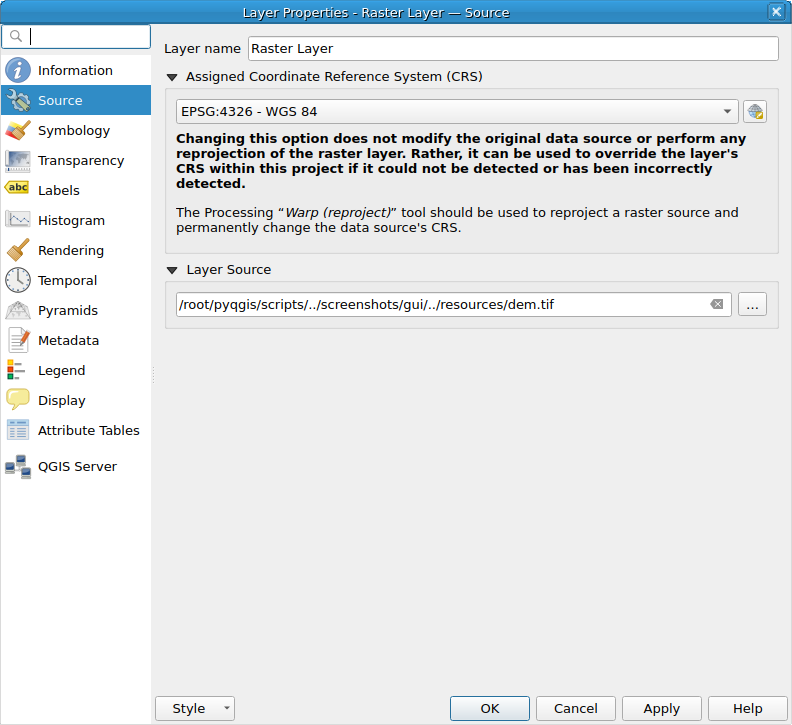

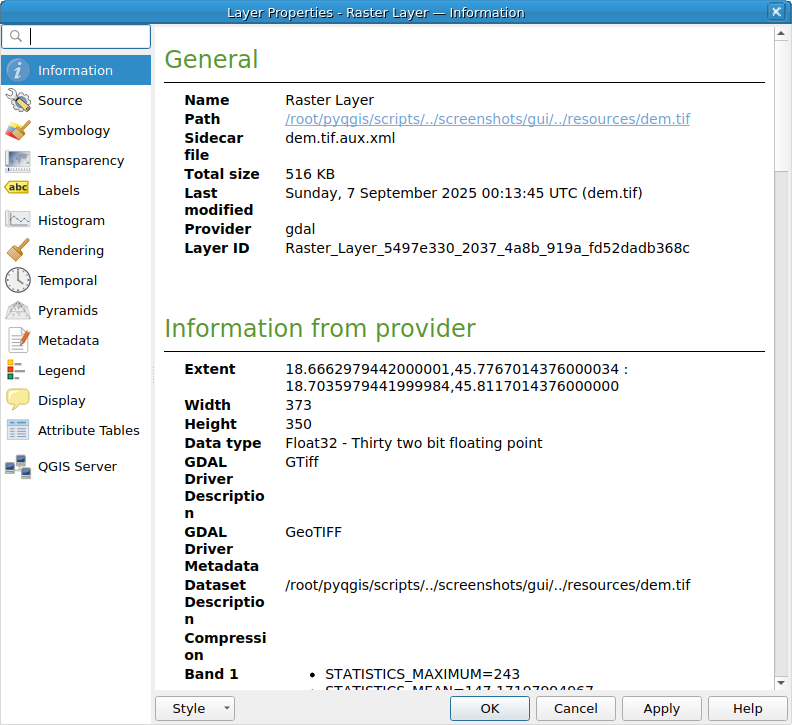

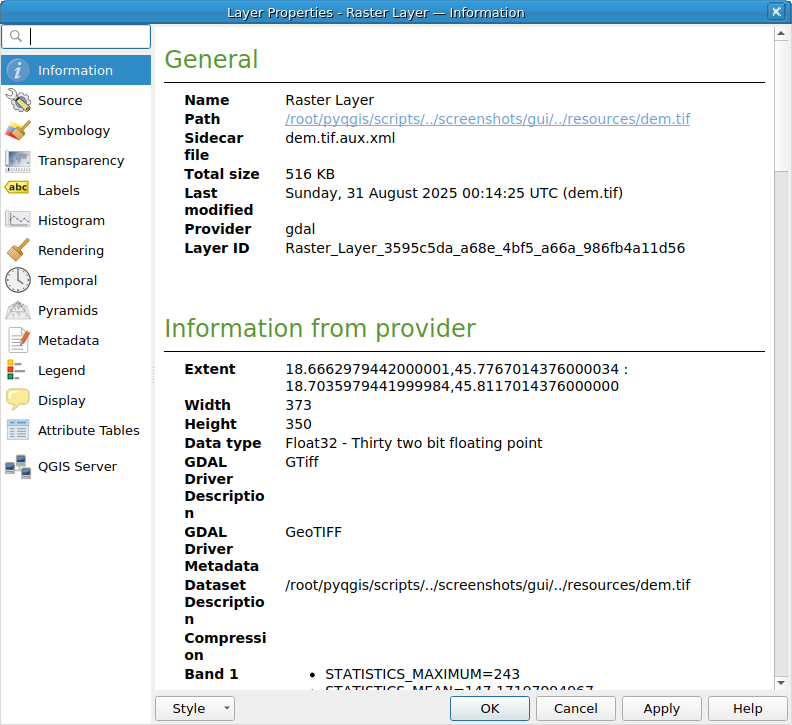

Property sheet for a raster map layer

New in version 3.12.

QgsRasterLayerProperties(lyr: QgsMapLayer, canvas: QgsMapCanvas, parent: QWidget = None, a3: Union[Qt.WindowFlags, Qt.WindowType] = QgsGuiUtils.ModalDialogFlags) Constructor

Parameters:

lyr – Map layer for which properties will be displayed
canvas – the QgsMapCanvas instance
parent – the parent of this widget

fl –

windows flag

Methods

`actionEvent`
`addPropertiesPageFactory`	Adds a properties page factory to the raster layer properties dialog.
`changeEvent`
`childEvent`
`closeEvent`
`connectNotify`
`contextMenuEvent`
`create`
`createExpressionContext`	rtype: QgsExpressionContext
`customEvent`
`destroy`
`disconnectNotify`
`dragEnterEvent`
`dragLeaveEvent`
`dragMoveEvent`
`dropEvent`
`enterEvent`
`event`
`eventFilter`	param obj:
`focusInEvent`
`focusNextChild`
`focusNextPrevChild`
`focusOutEvent`
`focusPreviousChild`
`hideEvent`
`initPainter`
`inputMethodEvent`
`isSignalConnected`
`keyPressEvent`
`keyReleaseEvent`
`leaveEvent`
`loadDefaultStyle`	Loads the default style when appropriate button is pressed
`loadStyle`	Loads a saved style when appropriate button is pressed
`metric`
`mouseDoubleClickEvent`
`mouseMoveEvent`
`mousePressEvent`
`mouseReleaseEvent`
`moveEvent`
`nativeEvent`
`optionsStackedWidget_CurrentChanged`	Select relevant tab on current page change
`optionsStackedWidget_WidgetRemoved`	Remove tab and unregister widgets on page remove
`paintEvent`
`receivers`
`registerTextSearchWidgets`	register widgets in the dialog to search for text in it it is automatically called if a line edit has "mSearchLineEdit" as object name.
`resizeEvent`
`saveDefaultStyle`	Saves the default style when appropriate button is pressed
`saveStyleAs`	Saves a style when appriate button is pressed
`sender`
`senderSignalIndex`
`sharedPainter`
`showEvent`
`tabletEvent`
`timerEvent`
`updateMicroFocus`
`updateOptionsListVerticalTabs`	Update tabs on the splitter move
`updateWindowTitle`
`warnAboutMissingObjects`
`wheelEvent`

actionEvent(self, QActionEvent)¶

addPropertiesPageFactory(self, factory: QgsMapLayerConfigWidgetFactory)¶

Adds a properties page factory to the raster layer properties dialog.

New in version 3.18.

Parameters:: factory (QgsMapLayerConfigWidgetFactory) –

changeEvent(self, QEvent)¶

childEvent(self, QChildEvent)¶

closeEvent(self, QCloseEvent)¶

connectNotify(self, QMetaMethod)¶

contextMenuEvent(self, QContextMenuEvent)¶

create(self, window: PyQt5.sip.voidptr = 0, initializeWindow: bool = True, destroyOldWindow: bool = True)¶

createExpressionContext(self) → QgsExpressionContext¶

Return type:: QgsExpressionContext

customEvent(self, QEvent)¶

destroy(self, destroyWindow: bool = True, destroySubWindows: bool = True)¶

disconnectNotify(self, QMetaMethod)¶

dragEnterEvent(self, QDragEnterEvent)¶

dragLeaveEvent(self, QDragLeaveEvent)¶

dragMoveEvent(self, QDragMoveEvent)¶

dropEvent(self, QDropEvent)¶

enterEvent(self, QEvent)¶

event(self, QEvent) → bool¶

eventFilter(self, obj: QObject, ev: QEvent) → bool¶

Parameters:

obj (QObject) –
ev (QEvent) –

Return type:

bool

focusInEvent(self, QFocusEvent)¶

focusNextChild(self) → bool¶

focusNextPrevChild(self, bool) → bool¶

focusOutEvent(self, QFocusEvent)¶

focusPreviousChild(self) → bool¶

hideEvent(self, QHideEvent)¶

initPainter(self, QPainter)¶

inputMethodEvent(self, QInputMethodEvent)¶

isSignalConnected(self, QMetaMethod) → bool¶

keyPressEvent(self, QKeyEvent)¶

keyReleaseEvent(self, QKeyEvent)¶

leaveEvent(self, QEvent)¶

loadDefaultStyle(self)¶: Loads the default style when appropriate button is pressed

New in version 3.30.

loadStyle(self)¶: Loads a saved style when appropriate button is pressed

New in version 3.30.

metric(self, QPaintDevice.PaintDeviceMetric) → int¶

mouseDoubleClickEvent(self, QMouseEvent)¶

mouseMoveEvent(self, QMouseEvent)¶

mousePressEvent(self, QMouseEvent)¶

mouseReleaseEvent(self, QMouseEvent)¶

moveEvent(self, QMoveEvent)¶

nativeEvent(self, Union[QByteArray, bytes, bytearray], PyQt5.sip.voidptr) → Tuple[bool, int]¶

optionsStackedWidget_CurrentChanged(self, index: int)¶: Select relevant tab on current page change

optionsStackedWidget_WidgetRemoved(self, index: int)¶: Remove tab and unregister widgets on page remove

paintEvent(self, e: QPaintEvent)¶

receivers(self, PYQT_SIGNAL) → int¶

registerTextSearchWidgets(self)¶: register widgets in the dialog to search for text in it it is automatically called if a line edit has “mSearchLineEdit” as object name.

New in version 3.0.

resizeEvent(self, QResizeEvent)¶

saveDefaultStyle(self)¶: Saves the default style when appropriate button is pressed

New in version 3.30.

saveStyleAs(self)¶: Saves a style when appriate button is pressed

New in version 3.30.

sender(self) → QObject¶

senderSignalIndex(self) → int¶

sharedPainter(self) → QPainter¶

showEvent(self, e: QShowEvent)¶

tabletEvent(self, QTabletEvent)¶

timerEvent(self, QTimerEvent)¶

updateMicroFocus(self)¶

updateOptionsListVerticalTabs(self)¶: Update tabs on the splitter move

updateWindowTitle(self)¶

warnAboutMissingObjects(self)¶

wheelEvent(self, QWheelEvent)¶
