Class: QgsRasterBandComboBox

class qgis.gui.QgsRasterBandComboBox

Bases: PyQt5.QtWidgets.QComboBox

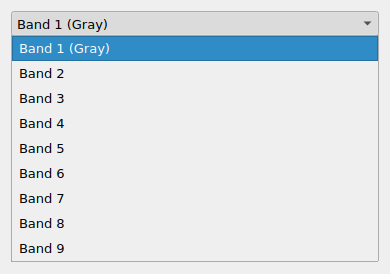

A combobox widget which displays the bands present in a raster layer.

QgsRasterBandComboBox(parent: QWidget = None) Constructor for QgsRasterBandComboBox.

Methods

actionEvent

changeEvent

childEvent

closeEvent

connectNotify

contextMenuEvent

create

currentBand

Returns the current band number selected in the combobox, or -1 if no band is selected.

customEvent

destroy

disconnectNotify

displayBandName

Returns a user-friendly band name for the specified band.

dragEnterEvent

dragLeaveEvent

dragMoveEvent

dropEvent

enterEvent

focusInEvent

focusNextChild

focusNextPrevChild

focusOutEvent

focusPreviousChild

hideEvent

initPainter

initStyleOption

inputMethodEvent

isShowingNotSetOption

Returns True if the combo box is showing the "not set" option.

isSignalConnected

keyPressEvent

keyReleaseEvent

layer

Returns the layer currently associated with the combobox.

leaveEvent

metric

mouseDoubleClickEvent

mouseMoveEvent

mousePressEvent

mouseReleaseEvent

moveEvent

nativeEvent

paintEvent

receivers

resizeEvent

sender

senderSignalIndex

setBand

Sets the current band number selected in the combobox.

setLayer

Sets the raster layer for which the bands are listed in the combobox.

setShowNotSetOption

Sets whether the combo box should show the "not set" option.

sharedPainter

showEvent

tabletEvent

timerEvent

updateMicroFocus

wheelEvent

Signals

bandChanged

pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL

actionEvent(self, QActionEvent)
bandChanged

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:
  • name (str = ...) –

  • revision (int = ...) –

  • arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

changeEvent(self, QEvent)
childEvent(self, QChildEvent)
closeEvent(self, QCloseEvent)
connectNotify(self, QMetaMethod)
contextMenuEvent(self, QContextMenuEvent)
create(self, window: PyQt5.sip.voidptr = 0, initializeWindow: bool = True, destroyOldWindow: bool = True)
currentBand(self) int

Returns the current band number selected in the combobox, or -1 if no band is selected.

See also

setBand()

Return type:

int

customEvent(self, QEvent)
destroy(self, destroyWindow: bool = True, destroySubWindows: bool = True)
disconnectNotify(self, QMetaMethod)
displayBandName(provider: QgsRasterDataProvider, band: int) str

Returns a user-friendly band name for the specified band.

Parameters:
Return type:

str

dragEnterEvent(self, QDragEnterEvent)
dragLeaveEvent(self, QDragLeaveEvent)
dragMoveEvent(self, QDragMoveEvent)
dropEvent(self, QDropEvent)
enterEvent(self, QEvent)
focusInEvent(self, QFocusEvent)
focusNextChild(self) bool
focusNextPrevChild(self, bool) bool
focusOutEvent(self, QFocusEvent)
focusPreviousChild(self) bool
hideEvent(self, QHideEvent)
initPainter(self, QPainter)
initStyleOption(self, QStyleOptionComboBox)
inputMethodEvent(self, QInputMethodEvent)
isShowingNotSetOption(self) bool

Returns True if the combo box is showing the “not set” option.

Return type:

bool

isSignalConnected(self, QMetaMethod) bool
keyPressEvent(self, QKeyEvent)
keyReleaseEvent(self, QKeyEvent)
layer(self) QgsRasterLayer

Returns the layer currently associated with the combobox.

See also

setLayer()

Return type:

QgsRasterLayer

leaveEvent(self, QEvent)
metric(self, QPaintDevice.PaintDeviceMetric) int
mouseDoubleClickEvent(self, QMouseEvent)
mouseMoveEvent(self, QMouseEvent)
mousePressEvent(self, QMouseEvent)
mouseReleaseEvent(self, QMouseEvent)
moveEvent(self, QMoveEvent)
nativeEvent(self, Union[QByteArray, bytes, bytearray], PyQt5.sip.voidptr) Tuple[bool, int]
paintEvent(self, QPaintEvent)
receivers(self, PYQT_SIGNAL) int
resizeEvent(self, QResizeEvent)
sender(self) QObject
senderSignalIndex(self) int
setBand(self, band: int)

Sets the current band number selected in the combobox.

See also

band()

Parameters:

band (int) –

setLayer(self, layer: QgsMapLayer)

Sets the raster layer for which the bands are listed in the combobox. If no layer is set or a non-raster layer is set then the combobox will be empty.

See also

layer()

Parameters:

layer (QgsMapLayer) –

setShowNotSetOption(self, show: bool, string: str = '')

Sets whether the combo box should show the “not set” option. Optionally the built in “not set” text can be overridden by specifying a string.

Parameters:
  • show (bool) –

  • string (str = '') –

sharedPainter(self) QPainter
showEvent(self, QShowEvent)
tabletEvent(self, QTabletEvent)
timerEvent(self, QTimerEvent)
updateMicroFocus(self)
wheelEvent(self, QWheelEvent)
