Class: QgsDataDefinedSizeLegendWidget¶

Widget for configuration of appearance of legend for marker symbols with data-defined size.

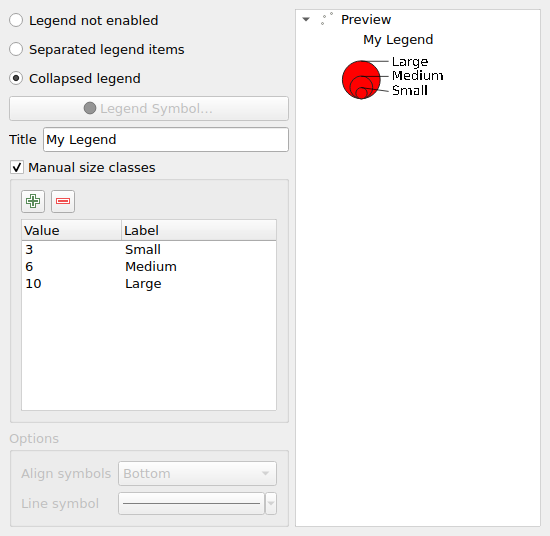

QgsDataDefinedSizeLegendWidget allowing customization of data-defined size legends¶

Class Hierarchy¶

Base classes¶

`QgsPanelWidget`	Base class for any widget that can be shown as an inline panel.
QWidget
QObject
QPaintDevice

Methods

dataDefinedSizeLegend

Returns configuration as set up in the dialog (may be None).

class qgis.gui.QgsDataDefinedSizeLegendWidget[source]¶

Bases: QgsPanelWidget

__init__(ddsLegend: QgsDataDefinedSizeLegend | None, ddSize: QgsProperty, overrideSymbol: QgsMarkerSymbol | None, canvas: QgsMapCanvas | None = None, parent: QWidget | None = None)

Creates the dialog and initializes the content to what is passed in the legend configuration (may be None). The ddSize argument determines scaling of the marker symbol - it should have a size scale transformer assigned to know the range of sizes. The overrideSymbol argument may override the source symbol: this is useful in case when the symbol is given from outside rather than being set inside QgsDataDefinedSizeLegend.

Parameters:

ddsLegend (Optional[QgsDataDefinedSizeLegend])
ddSize (QgsProperty)
overrideSymbol (Optional[QgsMarkerSymbol])
canvas (Optional[QgsMapCanvas] = None)
parent (Optional[QWidget] = None)

dataDefinedSizeLegend(self) → QgsDataDefinedSizeLegend | None[source]¶

Returns configuration as set up in the dialog (may be None). Ownership is passed to the caller.

Return type:: Optional[QgsDataDefinedSizeLegend]
