Class: QgsLabelObstacleSettingsWidget

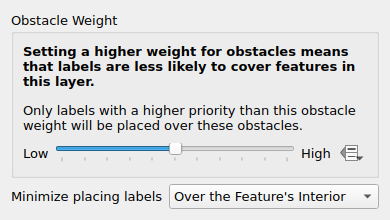

A widget for customising label obstacle settings.

Added in version 3.12.

QgsLabelObstacleSettingsWidget

Class Hierarchy

Base classes

QgsLabelSettingsWidgetBase	Base class for widgets which allow customization of label engine properties, such as label placement settings.
QgsPanelWidget	Base class for any widget that can be shown as an inline panel.
QWidget
QObject
QPaintDevice

Methods

setSettings	Sets the obstacle settings to show in the widget.
settings	Returns the obstacle settings defined by the widget.

class qgis.gui.QgsLabelObstacleSettingsWidget

Bases: QgsLabelSettingsWidgetBase

__init__(parent: QWidget | None = None, vl: QgsVectorLayer | None = None)

Constructor for QgsLabelObstacleSettingsWidget.

Parameters:

• parent (Optional[QWidget] = None) – parent widget

• vl (Optional[QgsVectorLayer] = None) – associated vector layer

setSettings(self, settings: QgsLabelObstacleSettings)

Sets the obstacle settings to show in the widget.

See also

settings()

Parameters:

settings (QgsLabelObstacleSettings)

settings(self) → QgsLabelObstacleSettings

Returns the obstacle settings defined by the widget.

See also

setSettings()

Return type:

QgsLabelObstacleSettings
