Class: QgsCodeEditor¶

class qgis.gui.QgsCodeEditor¶

Bases: PyQt5.Qsci.QsciScintilla

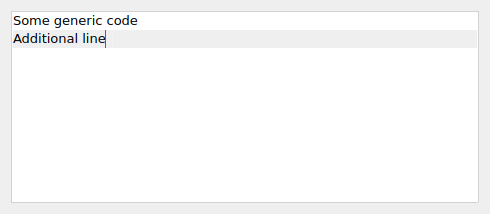

A text editor based on QScintilla2.

Note

may not be available in Python bindings, depending on platform support

New in version 2.6.

QgsCodeEditor(parent: QWidget = None, title: str = ‘’, folding: bool = False, margin: bool = False, flags: Union[QgsCodeEditor.Flags, QgsCodeEditor.Flag] = QgsCodeEditor.Flags(), mode: QgsCodeEditor.Mode = QgsCodeEditor.Mode.ScriptEditor) Construct a new code editor.

Parameters:

parent – The parent QWidget
title – The title to show in the code editor dialog
folding – False: Enable folding for code editor (deprecated, use flags instead)
margin – False: Enable margin for code editor (deprecated)
flags – flags controlling behavior of code editor (since QGIS 3.28)
mode – code editor mode (since QGIS 3.30)

New in version 2.6:

Enums

`Flag`	Bases: `enum.IntEnum`
`MarginRole`	Bases: `enum.IntEnum`
`Mode`	Bases: `enum.IntEnum`

Methods

`actionEvent`
`addWarning`	Adds a `warning` message and indicator to the specified a `lineNumber`.
`canInsertFromMimeData`
`changeEvent`
`checkSyntax`	Applies syntax checking to the editor.
`childEvent`
`clearPersistentHistory`	Clears the entire persistent history of commands run in the editor.
`clearSessionHistory`	Clears the history of commands run in the current session.
`clearWarnings`	Clears all warning messages from the editor.
`closeEvent`
`color`	Returns the color to use in the editor for the specified `role`.
`connectNotify`
`contextMenuEvent`	param event:
`create`
`customEvent`
`defaultColor`	Returns the default color for the specified `role`.
`destroy`
`disconnectNotify`
`dragEnterEvent`
`dragLeaveEvent`
`dragMoveEvent`
`drawFrame`
`dropEvent`
`enterEvent`
`event`
`eventFilter`	param watched:
`focusInEvent`
`focusNextChild`
`focusNextPrevChild`
`focusOutEvent`	param event:
`focusPreviousChild`
`foldingVisible`	Returns `True` if the folding controls are visible in the editor.
`fromMimeData`
`getMonospaceFont`	Returns the monospaced font to use for code editors.
`hideEvent`
`history`	Returns the list of commands previously executed in the editor.
`initPainter`
`initStyleOption`
`initializeLexer`	Called when the dialect specific code lexer needs to be initialized (or reinitialized).
`inputMethodEvent`
`inputMethodQuery`
`insertText`	Insert text at cursor position, or replace any selected text if user has made a selection.
`interpreter`	Returns the attached code interpreter, or `None` if not set.
`isCursorOnLastLine`	Returns `True` if the cursor is on the last line of the document.
`isFixedPitch`	Returns `True` if a `font` is a fixed pitch font.
`isSignalConnected`
`keyPressEvent`	param event:
`keyReleaseEvent`
`language`	Returns the associated scripting language.
`languageCapabilities`	Returns the associated scripting language capabilities.
`languageToString`	Returns a user-friendly, translated name of the specified script `language`.
`leaveEvent`
`lexerColor`	Returns the color to use in the lexer for the specified `role`.
`lexerFont`	Returns the font to use in the lexer.
`lineNumbersVisible`	Returns whether line numbers are visible in the editor.
`linearPosition`	Convenience function to return the cursor position as a linear index
`marginVisible`	Returns whether margins are in a visible state
`metric`
`mode`	Returns the code editor mode.
`mouseDoubleClickEvent`
`mouseMoveEvent`
`mousePressEvent`
`mouseReleaseEvent`
`moveCursorToEnd`	Moves the cursor to the end of the document and scrolls to ensure it is visible.
`moveCursorToStart`	Moves the cursor to the start of the document and scrolls to ensure it is visible.
`moveEvent`
`nativeEvent`
`paintEvent`
`populateContextMenu`	Called when the context `menu` for the widget is about to be shown, after it has been fully populated with the standard actions created by the base class.
`receivers`
`reformatCode`	Applies code reformatting to the editor.
`reformatCodeString`	Applies code reformatting to a `string` and returns the result.
`removeHistoryCommand`	Removes the command at the specified `index` from the history of the code editor.
`resizeEvent`
`runCommand`	Runs a command in the editor.
`runPostLexerConfigurationTasks`	Performs tasks which must be run after a lexer has been set for the widget.
`scrollContentsBy`
`selectionEnd`	Convenience function to return the end of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.
`selectionStart`	Convenience function to return the start of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.
`sender`
`senderSignalIndex`
`setColor`	Sets the `color` to use in the editor for the specified `role`.
`setFoldingVisible`	Set whether the folding controls are visible in the editor.
`setHistoryFilePath`	Sets the file path to use for recording and retrieving previously executed commands.
`setInterpreter`	Sets an attached code interpreter for executing commands when the editor is in the QgsCodeEditor.Mode.CommandInput mode.
`setLineNumbersVisible`	Sets whether line numbers should be visible in the editor.
`setLinearPosition`	Convenience function to set the cursor position as a linear index
`setLinearSelection`	Convenience function to set the selection using linear indexes
`setMarginVisible`	Set margin visible state
`setTitle`	Set the widget title
`setViewportMargins`
`sharedPainter`
`showEvent`
`showHistory`	Shows the command history dialog.
`showMessage`	Shows a user facing message (eg a warning message).
`showNextCommand`	Shows the next command from the session in the editor.
`showPreviousCommand`	Shows the previous command from the session in the editor.
`tabletEvent`
`timerEvent`
`toMimeData`
`toggleComment`	Toggle comment for the selected text.
`updateMicroFocus`
`updatePrompt`	Triggers an update of the interactive prompt part of the editor.
`updateSoftHistory`	Updates the soft history by storing the current editor text in the history.
`viewportEvent`
`viewportMargins`
`viewportSizeHint`
`wheelEvent`
`writeHistoryFile`	Stores the commands executed in the editor to the persistent history file.

Signals

`persistentHistoryCleared`	pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL
`sessionHistoryCleared`	pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL

class Flag(value)¶

Bases: enum.IntEnum

Flags controlling behavior of code editor

New in version 3.28.

CodeFolding: Indicates that code folding should be enabled for the editor
ImmediatelyUpdateHistory: Indicates that the history file should be immediately updated whenever a command is executed, instead of the default behavior of only writing the history on widget close. Since QGIS 3.32.

CodeFolding = 1¶

ImmediatelyUpdateHistory = 2¶

baseClass¶: alias of QgsCodeEditor

class Flags¶

class Flags(Union[QgsCodeEditor.Flags, QgsCodeEditor.Flag])

class Flags(QgsCodeEditor.Flags)

Bases: sip.wrapper

baseClass¶: alias of QgsCodeEditor

class MarginRole(value)¶

Bases: enum.IntEnum

Margin roles.

This enum contains the roles which the different numbered margins are used for.

New in version 3.16.

LineNumbers: Line numbers
ErrorIndicators: Error indicators
FoldingControls: Folding controls

baseClass¶: alias of QgsCodeEditor

class Mode(value)¶

Bases: enum.IntEnum

Code editor modes.

New in version 3.30.

ScriptEditor: Standard mode, allows for display and edit of entire scripts
OutputDisplay: Read only mode for display of command outputs
CommandInput: Command input mode

CommandInput = 2¶

OutputDisplay = 1¶

ScriptEditor = 0¶

baseClass¶: alias of QgsCodeEditor

actionEvent(self, QActionEvent)¶

addWarning(self, lineNumber: int, warning: str)¶

Adds a warning message and indicator to the specified a lineNumber.

See also

clearWarnings()

New in version 3.16.

Parameters:

lineNumber (int) –
warning (str) –

canInsertFromMimeData(self, QMimeData) → bool¶

changeEvent(self, QEvent)¶

checkSyntax(self) → bool¶

Applies syntax checking to the editor.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.CheckSyntax capability from languageCapabilities().

New in version 3.32.

Return type:: bool

childEvent(self, QChildEvent)¶

clearPersistentHistory(self)¶: Clears the entire persistent history of commands run in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

clearSessionHistory(self)¶: Clears the history of commands run in the current session.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

clearWarnings(self)¶: Clears all warning messages from the editor.

See also

addWarning()

New in version 3.16.

closeEvent(self, QCloseEvent)¶

color(role: QgsCodeEditorColorScheme.ColorRole) → QColor¶

Returns the color to use in the editor for the specified role.

This color will be the default theme color for the role, unless the user has manually selected a custom color scheme for the editor.

See also

setColor()

New in version 3.16.

Parameters:: role (QgsCodeEditorColorScheme.ColorRole) –
Return type:: QColor

connectNotify(self, QMetaMethod)¶

contextMenuEvent(self, event: QContextMenuEvent)¶

Parameters:: event (QContextMenuEvent) –

create(self, window: PyQt5.sip.voidptr = 0, initializeWindow: bool = True, destroyOldWindow: bool = True)¶

customEvent(self, QEvent)¶

defaultColor(role: QgsCodeEditorColorScheme.ColorRole, theme: str = '') → QColor¶

Returns the default color for the specified role.

The optional theme argument can be used to specify a color theme. A blank theme indicates the default color scheme.

Available themes are stored in QgsCodeEditorColorSchemeRegistry, and can be retrieved via QgsGui.codeEditorColorSchemeRegistry().

New in version 3.16.

Parameters:

role (QgsCodeEditorColorScheme.ColorRole) –
theme (str = '') –

Return type:

QColor

destroy(self, destroyWindow: bool = True, destroySubWindows: bool = True)¶

disconnectNotify(self, QMetaMethod)¶

dragEnterEvent(self, QDragEnterEvent)¶

dragLeaveEvent(self, QDragLeaveEvent)¶

dragMoveEvent(self, QDragMoveEvent)¶

drawFrame(self, QPainter)¶

dropEvent(self, QDropEvent)¶

enterEvent(self, QEvent)¶

event(self, QEvent) → bool¶

eventFilter(self, watched: QObject, event: QEvent) → bool¶

Parameters:

watched (QObject) –
event (QEvent) –

Return type:

bool

focusInEvent(self, QFocusEvent)¶

focusNextChild(self) → bool¶

focusNextPrevChild(self, bool) → bool¶

focusOutEvent(self, event: QFocusEvent)¶

Parameters:: event (QFocusEvent) –

focusPreviousChild(self) → bool¶

foldingVisible(self) → bool¶

Returns True if the folding controls are visible in the editor.

See also

setFoldingVisible()

Return type:: bool

fromMimeData(self, QMimeData) → Tuple[QByteArray, bool]¶

getMonospaceFont() → QFont¶

Returns the monospaced font to use for code editors.

New in version 3.16.

Return type:: QFont

hideEvent(self, QHideEvent)¶

history(self) → List[str]¶

Returns the list of commands previously executed in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

Return type:: List[str]

initPainter(self, QPainter)¶

initStyleOption(self, QStyleOptionFrame)¶

initializeLexer(self)¶

Called when the dialect specific code lexer needs to be initialized (or reinitialized).

The default implementation does nothing.

New in version 3.16.

inputMethodEvent(self, QInputMethodEvent)¶

inputMethodQuery(self, Qt.InputMethodQuery) → Any¶

insertText(self, text: str)¶

Insert text at cursor position, or replace any selected text if user has made a selection.

Parameters:: text (str) – The text to be inserted

interpreter(self) → QgsCodeInterpreter¶

Returns the attached code interpreter, or None if not set.

See also

setInterpreter()

New in version 3.30.

Return type:: QgsCodeInterpreter

isCursorOnLastLine(self) → bool¶

Returns True if the cursor is on the last line of the document.

New in version 3.28.

Return type:: bool

isFixedPitch(font: QFont) → bool¶

Returns True if a font is a fixed pitch font.

Parameters:: font (QFont) –
Return type:: bool

isSignalConnected(self, QMetaMethod) → bool¶

keyPressEvent(self, event: QKeyEvent)¶

Parameters:: event (QKeyEvent) –

keyReleaseEvent(self, QKeyEvent)¶

language(self) → Qgis.ScriptLanguage¶

Returns the associated scripting language.

New in version 3.30.

Return type:: Qgis.ScriptLanguage

languageCapabilities(self) → Qgis.ScriptLanguageCapabilities¶

Returns the associated scripting language capabilities.

New in version 3.32.

Return type:: Qgis.ScriptLanguageCapabilities

languageToString(language: Qgis.ScriptLanguage) → str¶

Returns a user-friendly, translated name of the specified script language.

New in version 3.30.

Parameters:: language (Qgis.ScriptLanguage) –
Return type:: str

leaveEvent(self, QEvent)¶

lexerColor(self, role: QgsCodeEditorColorScheme.ColorRole) → QColor¶

Returns the color to use in the lexer for the specified role.

New in version 3.16.

Parameters:: role (QgsCodeEditorColorScheme.ColorRole) –
Return type:: QColor

lexerFont(self) → QFont¶

Returns the font to use in the lexer.

New in version 3.16.

Return type:: QFont

lineNumbersVisible(self) → bool¶

Returns whether line numbers are visible in the editor.

See also

setLineNumbersVisible()

New in version 3.16.

Return type:: bool

linearPosition(self) → int¶

Convenience function to return the cursor position as a linear index

New in version 3.36.

Return type:: int

marginVisible(self) → bool¶

Returns whether margins are in a visible state

Deprecated since version Use: base class methods for individual margins instead, or lineNumbersVisible()

Return type:: bool

metric(self, QPaintDevice.PaintDeviceMetric) → int¶

mode(self) → QgsCodeEditor.Mode¶

Returns the code editor mode.

New in version 3.30.

Return type:: QgsCodeEditor.Mode

mouseDoubleClickEvent(self, QMouseEvent)¶

mouseMoveEvent(self, QMouseEvent)¶

mousePressEvent(self, QMouseEvent)¶

mouseReleaseEvent(self, QMouseEvent)¶

moveCursorToEnd(self)¶: Moves the cursor to the end of the document and scrolls to ensure it is visible.

New in version 3.28.

moveCursorToStart(self)¶: Moves the cursor to the start of the document and scrolls to ensure it is visible.

New in version 3.28.

moveEvent(self, QMoveEvent)¶

nativeEvent(self, Union[QByteArray, bytes, bytearray], PyQt5.sip.voidptr) → Tuple[bool, int]¶

paintEvent(self, QPaintEvent)¶

persistentHistoryCleared¶

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:

name (str = ...) –
revision (int = ...) –
arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

populateContextMenu(self, menu: QMenu)¶

Called when the context menu for the widget is about to be shown, after it has been fully populated with the standard actions created by the base class.

This method provides an opportunity for subclasses to add additional non-standard actions to the context menu.

New in version 3.30.

Parameters:: menu (QMenu) –

receivers(self, PYQT_SIGNAL) → int¶

reformatCode(self)¶

Applies code reformatting to the editor.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.Reformat capability from languageCapabilities().

New in version 3.32.

reformatCodeString(self, string: str) → str¶

Applies code reformatting to a string and returns the result.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.Reformat capability from languageCapabilities().

New in version 3.32.

Parameters:: string (str) –
Return type:: str

removeHistoryCommand(self, index: int)¶

Removes the command at the specified index from the history of the code editor.

New in version 3.30.

Parameters:: index (int) –

resizeEvent(self, QResizeEvent)¶

runCommand(self, command: str, skipHistory: bool = False)¶

Runs a command in the editor.

An interpreter() must be set.

Since QGIS 3.32, if skipHistory is True then the command will not be automatically added to the widget’s history.

New in version 3.30.

Parameters:

command (str) –
skipHistory (bool = False) –

runPostLexerConfigurationTasks(self)¶: Performs tasks which must be run after a lexer has been set for the widget.

New in version 3.16.

scrollContentsBy(self, int, int)¶

selectionEnd(self) → int¶

Convenience function to return the end of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.

New in version 3.36.

Return type:: int

selectionStart(self) → int¶

Convenience function to return the start of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.

New in version 3.36.

Return type:: int

sender(self) → QObject¶

senderSignalIndex(self) → int¶

sessionHistoryCleared¶

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:

name (str = ...) –
revision (int = ...) –
arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

setColor(role: QgsCodeEditorColorScheme.ColorRole, color: QColor | Qt.GlobalColor | QGradient)¶

Sets the color to use in the editor for the specified role.

This color will be stored as the new default color for the role, to be used for all code editors.

Set color to an invalid QColor in order to clear the stored color value and reset it to the default color.

See also

color()

New in version 3.16.

Parameters:

role (QgsCodeEditorColorScheme.ColorRole) –
color (Union[QColor) –

setFoldingVisible(self, folding: bool)¶

Set whether the folding controls are visible in the editor.

See also

foldingVisible()

Parameters:: folding (bool) –

setHistoryFilePath(self, path: str)¶

Sets the file path to use for recording and retrieving previously executed commands.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

Parameters:: path (str) –

setInterpreter(self, newInterpreter: QgsCodeInterpreter)¶

Sets an attached code interpreter for executing commands when the editor is in the QgsCodeEditor.Mode.CommandInput mode.

See also

interpreter()

New in version 3.30.

Parameters:: newInterpreter (QgsCodeInterpreter) –

setLineNumbersVisible(self, visible: bool)¶

Sets whether line numbers should be visible in the editor.

Defaults to False.

See also

lineNumbersVisible()

New in version 3.16.

Parameters:: visible (bool) –

setLinearPosition(self, position: int)¶

Convenience function to set the cursor position as a linear index

New in version 3.36.

Parameters:: position (int) –

setLinearSelection(self, start: int, end: int)¶

Convenience function to set the selection using linear indexes

New in version 3.36.

Parameters:

start (int) –
end (int) –

setMarginVisible(self, margin: bool)¶

Set margin visible state

Parameters:: margin (bool) – Set margin in the editor

Deprecated since version Use: base class methods for individual margins instead, or setLineNumbersVisible()

setTitle(self, title: str)¶

Set the widget title

Parameters:: title (str) – widget title

setViewportMargins(self, int, int, int, int)¶
setViewportMargins(self, QMargins) → None

sharedPainter(self) → QPainter¶

showEvent(self, QShowEvent)¶

showHistory(self)¶: Shows the command history dialog.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

showMessage(self, title: str, message: str, level: Qgis.MessageLevel)¶

Shows a user facing message (eg a warning message).

The default implementation uses QMessageBox.

New in version 3.32.

Parameters:

title (str) –
message (str) –
level (Qgis.MessageLevel) –

showNextCommand(self)¶: Shows the next command from the session in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

showPreviousCommand(self)¶: Shows the previous command from the session in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

tabletEvent(self, QTabletEvent)¶

timerEvent(self, QTimerEvent)¶

toMimeData(self, Union[QByteArray, bytes, bytearray], bool) → QMimeData¶

toggleComment(self)¶

Toggle comment for the selected text.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.ToggleComment capability from languageCapabilities().

New in version 3.32.

updateMicroFocus(self)¶

updatePrompt(self)¶: Triggers an update of the interactive prompt part of the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

New in version 3.30.

updateSoftHistory(self)¶: Updates the soft history by storing the current editor text in the history.

New in version 3.30.

viewportEvent(self, QEvent) → bool¶

viewportMargins(self) → QMargins¶

viewportSizeHint(self) → QSize¶

wheelEvent(self, QWheelEvent)¶

writeHistoryFile(self) → bool¶

Stores the commands executed in the editor to the persistent history file.

New in version 3.30.

Return type:: bool
