Class: QgsAdvancedDigitizingFloater¶

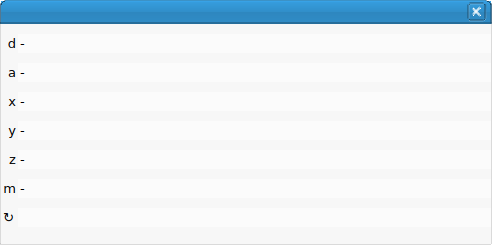

A widget that floats next to the mouse pointer, and allows interaction with the AdvancedDigitizing feature.

It proxies display and actions to QgsMapToolAdvancedDigitizingDockWidget.

Note

This class is a technology preview and unstable API.

Added in version 3.8.

List of all members, including inherited members

Class Hierarchy¶

Base classes¶

QWidget
QObject
QPaintDevice

Enums

FloaterItem

Available floater items

Methods

`FloaterItems`
`active`	Whether the floater is active or not.
`changeWeight`	Updates the weight value displayed in the floater for NURBSCurve.
`enabledChangedWeight`	Shows or hides the weight widget in the floater for NURBSCurve.
`focusOnWeight`	Requests focus on the weight input field for NURBSCurve.
`itemMeasurementDisplayType`	Returns the measurement display type for a floater item.
`itemVisibility`	Returns `True` if the floater item visibility setting is enabled.
`setActive`	Set whether the floater should be active or not.
`setItemMeasurementType`	Set whether the measurement display type for a floater item.
`setItemVisibility`	Set whether the floater item should be visible or not.

Static Methods

itemSupportsMeasurementType

Returns True if a floater item supports display in different Qgis.CadMeasurementDisplayType values.

class qgis.gui.QgsAdvancedDigitizingFloater[source]¶

Bases: QWidget

__init__(canvas: QgsMapCanvas | None, cadDockWidget: QgsAdvancedDigitizingDockWidget | None)

Create an advanced digitizing floater widget

Parameters:

canvas (Optional[QgsMapCanvas]) – The map canvas on which the widget operates
cadDockWidget (Optional[QgsAdvancedDigitizingDockWidget]) – The cadDockWidget to which the floater belongs

Added in version 3.8.

class FloaterItem(*values)¶

Bases: IntFlag

Available floater items

XCoordinate: X coordinate
YCoordinate: Y coordinate
MCoordinate: M coordinate
ZCoordinate: Z coordinate
Angle: Angle between segments
CommonAngleSnapping: Common angles
Distance: Distance (segment length)
Bearing: Segment bearing
Weight: Weight for NURBSCurve

Added in version 4.0.
Area: Total area

Added in version 4.0.
TotalLength: Total length (or perimeter)

Added in version 4.0.

Angle = 32¶

Area = 1024¶

Bearing = 256¶

CommonAngleSnapping = 64¶

Distance = 128¶

MCoordinate = 8¶

TotalLength = 2048¶

Weight = 512¶

XCoordinate = 2¶

YCoordinate = 4¶

ZCoordinate = 16¶

FloaterItems()¶

active(self) → bool[source]¶

Whether the floater is active or not. Note that the floater may be active but not visible (e.g. if the mouse is not over the canvas).

Added in version 3.8.

Return type:: bool

changeWeight(self, text: str | None)[source]¶

Updates the weight value displayed in the floater for NURBSCurve.

Parameters:: text (Optional[str]) – The weight value as a string

Added in version 4.0.

enabledChangedWeight(self, enabled: bool)[source]¶

Shows or hides the weight widget in the floater for NURBSCurve.

Parameters:: enabled (bool) – Whether weight editing is active

Added in version 4.0.

focusOnWeight(self)[source]¶: Requests focus on the weight input field for NURBSCurve.

Added in version 4.0.

itemMeasurementDisplayType(self, item: QgsAdvancedDigitizingFloater.FloaterItem) → Qgis.CadMeasurementDisplayType[source]¶

Returns the measurement display type for a floater item.

If the item does not support measurement types (see itemSupportsMeasurementType()), Qgis.CadMeasurementDisplayType.Hidden will be returned. For these items use itemVisibility() instead.

Added in version 4.0.

Parameters:: item (QgsAdvancedDigitizingFloater.FloaterItem)
Return type:: Qgis.CadMeasurementDisplayType

static itemSupportsMeasurementType(item: QgsAdvancedDigitizingFloater.FloaterItem) → bool[source]¶

Returns True if a floater item supports display in different Qgis.CadMeasurementDisplayType values.

Added in version 4.0.

Parameters:: item (QgsAdvancedDigitizingFloater.FloaterItem)
Return type:: bool

itemVisibility(self, item: QgsAdvancedDigitizingFloater.FloaterItem) → bool[source]¶

Returns True if the floater item visibility setting is enabled.

Parameters:: item (QgsAdvancedDigitizingFloater.FloaterItem) – floater item

Added in version 3.32.

Return type:: bool

setActive(self, active: bool)[source]¶

Set whether the floater should be active or not. Note that the floater may be active but not visible (e.g. if the mouse is not over the canvas).

Parameters:: active (bool)

Added in version 3.8.

setItemMeasurementType(self, item: QgsAdvancedDigitizingFloater.FloaterItem, type: Qgis.CadMeasurementDisplayType)[source]¶

Set whether the measurement display type for a floater item.

Added in version 4.0.

Parameters:

item (QgsAdvancedDigitizingFloater.FloaterItem)
type (Qgis.CadMeasurementDisplayType)

setItemVisibility(self, item: QgsAdvancedDigitizingFloater.FloaterItem, visible: bool)[source]¶

Set whether the floater item should be visible or not.

Parameters:

item (QgsAdvancedDigitizingFloater.FloaterItem) – floater item
visible (bool)

Added in version 3.32.
