Class: QgsProjectionSelectionTreeWidget¶

class qgis.gui.QgsProjectionSelectionTreeWidget¶

Bases: PyQt5.QtWidgets.QWidget

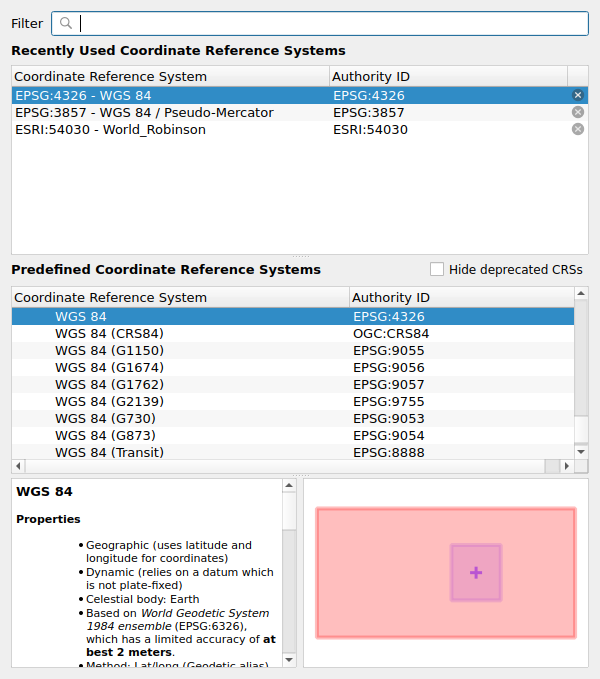

A widget for selecting a coordinate reference system from a tree.

This widget implements a tree view of projections, as seen in the QgsProjectionSelectionDialog dialog. In most cases it is more suitable to use the compact QgsProjectionSelectionWidget widget.

See also

QgsProjectionSelectionDialog

See also

QgsProjectionSelectionWidget

New in version 3.0.

QgsProjectionSelectionTreeWidget(parent: QWidget = None, filters: Union[QgsCoordinateReferenceSystemProxyModel.Filters, QgsCoordinateReferenceSystemProxyModel.Filter] = QgsCoordinateReferenceSystemProxyModel.FilterHorizontal|QgsCoordinateReferenceSystemProxyModel.FilterCompound) Constructor for QgsProjectionSelectionTreeWidget, with the specified parent widget.

Since QGIS 3.34, the optional filter argument can be used to specify filters on the systems shown in the widget. The default is to show all horizontal and compound CRS in order to match the behavior of older QGIS releases. The filter can be altered to also include vertical CRS if desired.

Methods

actionEvent

changeEvent

childEvent

clearRecentCrs

Clear the list of recent projections.

closeEvent

connectNotify

contextMenuEvent

create

crs

Returns the CRS currently selected in the widget.

customEvent

destroy

disconnectNotify

dragEnterEvent

dragLeaveEvent

dragMoveEvent

dropEvent

enterEvent

event

eventFilter

param obj:

filters

Returns the filters set on the available CRS.

focusInEvent

focusNextChild

focusNextPrevChild

focusOutEvent

focusPreviousChild

hasValidSelection

Returns True if the current selection in the widget is a valid choice.

hideEvent

initPainter

inputMethodEvent

isSignalConnected

keyPressEvent

keyReleaseEvent

leaveEvent

metric

mouseDoubleClickEvent

mouseMoveEvent

mousePressEvent

mouseReleaseEvent

moveEvent

nativeEvent

paintEvent

previewRect

The initial "preview" rectangle for the bounds overview map.

pushProjectionToFront

Marks the current selected projection for push to front of recent projections list.

receivers

resizeEvent

param event:

sender

senderSignalIndex

setCrs

Sets the initial crs to show within the dialog.

setFilters

Sets filters for the available CRS.

setNotSetText

Sets the text to show for the not set option.

setOgcWmsCrsFilter

Filters this widget by the given CRSs.

setPreviewRect

Sets the initial "preview" rectangle for the bounds overview map.

setShowBoundsMap

Sets whether to show the bounds preview map.

setShowNoProjection

Sets whether a "no/invalid" projection option should be shown.

sharedPainter

showBoundsMap

Returns whether the bounds preview map is shown.

showEvent

showNoProjection

Returns whether the "no/invalid" projection option is shown.

tabletEvent

timerEvent

updateMicroFocus

wheelEvent

Signals

crsSelected

pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL

hasValidSelectionChanged

pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL

initialized

pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL

projectionDoubleClicked

pyqtSignal(*types, name: str = ..., revision: int = ..., arguments: Sequence = ...) -> PYQT_SIGNAL

actionEvent(self, QActionEvent)¶

changeEvent(self, QEvent)¶

childEvent(self, QChildEvent)¶

clearRecentCrs(self)¶: Clear the list of recent projections.

New in version 3.32.

closeEvent(self, QCloseEvent)¶

connectNotify(self, QMetaMethod)¶

contextMenuEvent(self, QContextMenuEvent)¶

create(self, window: PyQt5.sip.voidptr = 0, initializeWindow: bool = True, destroyOldWindow: bool = True)¶

crs(self) → QgsCoordinateReferenceSystem¶

Returns the CRS currently selected in the widget.

See also

setCrs()

New in version 3.0.

Return type:: QgsCoordinateReferenceSystem

crsSelected¶

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:

name (str = ...) –
revision (int = ...) –
arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

customEvent(self, QEvent)¶

destroy(self, destroyWindow: bool = True, destroySubWindows: bool = True)¶

disconnectNotify(self, QMetaMethod)¶

dragEnterEvent(self, QDragEnterEvent)¶

dragLeaveEvent(self, QDragLeaveEvent)¶

dragMoveEvent(self, QDragMoveEvent)¶

dropEvent(self, QDropEvent)¶

enterEvent(self, QEvent)¶

event(self, QEvent) → bool¶

eventFilter(self, obj: QObject, ev: QEvent) → bool¶

Parameters:

obj (QObject) –
ev (QEvent) –

Return type:

bool

filters(self) → QgsCoordinateReferenceSystemProxyModel.Filters¶

Returns the filters set on the available CRS.

See also

setFilters()

New in version 3.34.

Return type:: QgsCoordinateReferenceSystemProxyModel.Filters

focusInEvent(self, QFocusEvent)¶

focusNextChild(self) → bool¶

focusNextPrevChild(self, bool) → bool¶

focusOutEvent(self, QFocusEvent)¶

focusPreviousChild(self) → bool¶

hasValidSelection(self) → bool¶

Returns True if the current selection in the widget is a valid choice. Valid selections include any projection and also the “no/invalid projection” option (if setShowNoProjection() was called). Invalid selections are the group headers (such as “Geographic Coordinate Systems”)

Return type:: bool

hasValidSelectionChanged¶

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:

name (str = ...) –
revision (int = ...) –
arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

hideEvent(self, QHideEvent)¶

initPainter(self, QPainter)¶

initialized¶

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:

name (str = ...) –
revision (int = ...) –
arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

inputMethodEvent(self, QInputMethodEvent)¶

isSignalConnected(self, QMetaMethod) → bool¶

keyPressEvent(self, QKeyEvent)¶

keyReleaseEvent(self, QKeyEvent)¶

leaveEvent(self, QEvent)¶

metric(self, QPaintDevice.PaintDeviceMetric) → int¶

mouseDoubleClickEvent(self, QMouseEvent)¶

mouseMoveEvent(self, QMouseEvent)¶

mousePressEvent(self, QMouseEvent)¶

mouseReleaseEvent(self, QMouseEvent)¶

moveEvent(self, QMoveEvent)¶

nativeEvent(self, Union[QByteArray, bytes, bytearray], PyQt5.sip.voidptr) → Tuple[bool, int]¶

paintEvent(self, QPaintEvent)¶

previewRect(self) → QgsRectangle¶

The initial “preview” rectangle for the bounds overview map.

See also

previewRect()

New in version 3.0.

Return type:: QgsRectangle

projectionDoubleClicked¶

pyqtSignal(*types, name: str = …, revision: int = …, arguments: Sequence = …) -> PYQT_SIGNAL

types is normally a sequence of individual types. Each type is either a type object or a string that is the name of a C++ type. Alternatively each type could itself be a sequence of types each describing a different overloaded signal. name is the optional C++ name of the signal. If it is not specified then the name of the class attribute that is bound to the signal is used. revision is the optional revision of the signal that is exported to QML. If it is not specified then 0 is used. arguments is the optional sequence of the names of the signal’s arguments.

Parameters:

name (str = ...) –
revision (int = ...) –
arguments (Sequence = ...) –

Return type:

PYQT_SIGNAL

pushProjectionToFront(self)¶: Marks the current selected projection for push to front of recent projections list.

Deprecated since version Has: no effect since QGIS 3.20

receivers(self, PYQT_SIGNAL) → int¶

resizeEvent(self, event: QResizeEvent)¶

Parameters:: event (QResizeEvent) –

sender(self) → QObject¶

senderSignalIndex(self) → int¶

setCrs(self, crs: QgsCoordinateReferenceSystem)¶

Sets the initial crs to show within the dialog.

See also

crs()

New in version 3.0.

Parameters:: crs (QgsCoordinateReferenceSystem) –

setFilters(self, filters: QgsCoordinateReferenceSystemProxyModel.Filters | QgsCoordinateReferenceSystemProxyModel.Filter)¶

Sets filters for the available CRS.

See also

filters()

New in version 3.34.

Parameters:: filters (Union[QgsCoordinateReferenceSystemProxyModel.Filters) –

setNotSetText(self, text: str)¶

Sets the text to show for the not set option. Note that this option is not shown by default and must be set visible by calling setShowNoProjection().

New in version 3.16.

Parameters:: text (str) –

setOgcWmsCrsFilter(self, crsFilter: Iterable[str])¶

Filters this widget by the given CRSs.

Sets this widget to filter the available projections to those listed by the given Coordinate Reference Systems.

Parameters:: crsFilter (Iterable[str]) – a list of the authority:id strings for Coordinate Reference Systems to include in the widget.

setPreviewRect(self, rect: QgsRectangle)¶

Sets the initial “preview” rectangle for the bounds overview map.

See also

previewRect()

New in version 3.0.

Parameters:: rect (QgsRectangle) –

setShowBoundsMap(self, show: bool)¶

Sets whether to show the bounds preview map.

See also

showBoundsMap()

New in version 3.0.

Parameters:: show (bool) –

setShowNoProjection(self, show: bool)¶

Sets whether a “no/invalid” projection option should be shown. If this option is selected, calling crs() will return an invalid QgsCoordinateReferenceSystem.

See also

showNoProjection()

New in version 3.0.

Parameters:: show (bool) –

sharedPainter(self) → QPainter¶

showBoundsMap(self) → bool¶

Returns whether the bounds preview map is shown.

See also

setShowBoundsMap()

New in version 3.0.

Return type:: bool

showEvent(self, QShowEvent)¶

showNoProjection(self) → bool¶

Returns whether the “no/invalid” projection option is shown. If this option is selected, calling crs() will return an invalid QgsCoordinateReferenceSystem.

See also

setShowNoProjection()

New in version 3.0.

Return type:: bool

tabletEvent(self, QTabletEvent)¶

timerEvent(self, QTimerEvent)¶

updateMicroFocus(self)¶

wheelEvent(self, QWheelEvent)¶
