Class: QgsRendererRasterPropertiesWidget

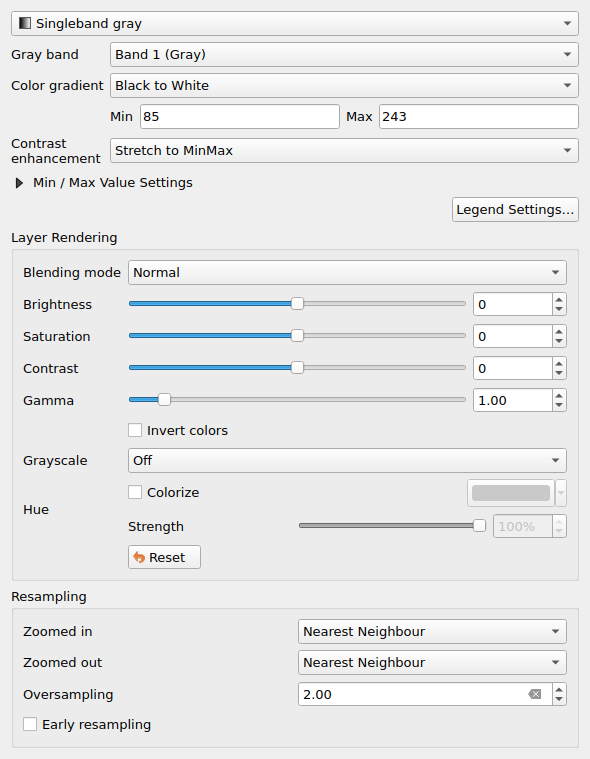

A widget for configuring properties of a raster layer renderer.

QgsRendererRasterPropertiesWidget

QgsRendererRasterPropertiesWidget

Class Hierarchy

Inheritance diagram of qgis.gui.QgsRendererRasterPropertiesWidget

Base classes

QgsMapLayerConfigWidget

A panel widget that can be shown in the map style dock.

QgsPanelWidget

Base class for any widget that can be shown as an inline panel.

QWidget

QObject

QPaintDevice

Abstract Methods

apply

Apply the changes from the dialog to the layer.

Methods

currentRenderWidget

Returns the active render widget.

rendererChanged

called when user changes renderer type

setMapCanvas

Sets the map canvas associated with the dialog.

Virtual Methods

In PyQGIS, only methods marked as virtual can be safely overridden in a Python subclass of QgsRendererRasterPropertiesWidget. See the FAQ for more details.

syncToLayer

Sync the widget to the given layer.

class qgis.gui.QgsRendererRasterPropertiesWidget[source]

Bases: QgsMapLayerConfigWidget

__init__(layer: QgsMapLayer | None, canvas: QgsMapCanvas | None, parent: QWidget | None = None)

A widget to hold the renderer properties for a raster layer.

Parameters:
  • layer (Optional[QgsMapLayer]) – The raster layer to style

  • canvas (Optional[QgsMapCanvas]) – The canvas object used to calculate the max and min values from the extent.

  • parent (Optional[QWidget] = None) – Parent object

abstract apply(self)[source]

Apply the changes from the dialog to the layer.

currentRenderWidget(self) QgsRasterRendererWidget | None[source]

Returns the active render widget. Can be None.

Return type:

Optional[QgsRasterRendererWidget]

rendererChanged(self)[source]

called when user changes renderer type

setMapCanvas(self, canvas: QgsMapCanvas | None)[source]

Sets the map canvas associated with the dialog. This allows the widget to retrieve the current map scale and other properties from the canvas.

Parameters:

canvas (Optional[QgsMapCanvas]) – map canvas

virtual syncToLayer(self, layer: QgsRasterLayer | None)[source]

Sync the widget to the given layer.

Parameters:

layer (Optional[QgsRasterLayer]) – The layer to use for the widget
