Class: QgsLabelingEngineRulesDialog

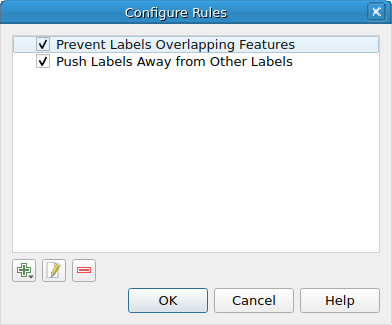

A dialog which allows configuration of a list of labeling engine rules.

This dialog allows users to add, remove, and edit the properties of a list of QgsAbstractLabelingEngineRule objects.

Added in version 3.40.

QgsLabelingEngineRulesDialog

QgsLabelingEngineRulesDialog

Class Hierarchy

Inheritance diagram of qgis.gui.QgsLabelingEngineRulesDialog

Base classes

QDialog

QWidget

QObject

QPaintDevice

Methods

rules

Returns the rules shown in the dialog.

setRules

Sets the rules to show in the dialog.

class qgis.gui.QgsLabelingEngineRulesDialog[source]

Bases: QDialog

__init__(parent: QWidget | None = None, flags: Qt.WindowFlags | Qt.WindowType = QgsGuiUtils.ModalDialogFlags)

Constructor for QgsLabelingEngineRulesDialog.

Parameters:
  • parent (Optional[QWidget] = None) – parent widget

  • flags (Union[Qt.WindowFlags, Qt.WindowType] = QgsGuiUtils.ModalDialogFlags) – window flags for dialog

rules(self) List[QgsAbstractLabelingEngineRule]

Returns the rules shown in the dialog.

The caller takes ownership of all returned rules.

Return type:

List[QgsAbstractLabelingEngineRule]

setRules(self, rules: Iterable[QgsAbstractLabelingEngineRule])[source]

Sets the rules to show in the dialog.

Ownership is not transferred, an internal copy will be made.

Parameters:

rules (Iterable[QgsAbstractLabelingEngineRule])
