Class: QgsCalloutPanelWidget

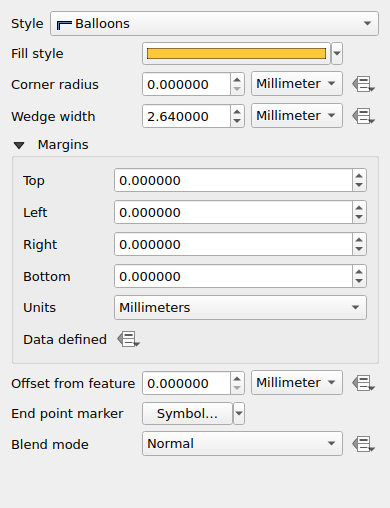

A panel widget for configuration of callouts.

Added in version 3.40.

QgsCalloutPanelWidget

Class Hierarchy

Base classes

QgsPanelWidget	Base class for any widget that can be shown as an inline panel.
QWidget
QObject
QPaintDevice

Methods

callout	Returns a new callout, respecting the configuration from the widget.
context	Returns the context in which the widget is shown, e.g., the associated map canvas and expression contexts.
geometryType	Returns the geometry type for the objects associated with the callouts.
setCallout	Sets the widget state to match the specified callout.
setContext	Sets the context in which the widget is shown, e.g., the associated map canvas and expression contexts.
setGeometryType	Sets the geometry type for the objects associated with the callouts.

Signals

calloutChanged

Emitted when the callout defined by the widget changes

class qgis.gui.QgsCalloutPanelWidget

Bases: QgsPanelWidget

__init__(parent: QWidget | None = None, layer: QgsMapLayer | None = None)

Constructor for QgsCalloutPanelWidget, with the specified parent widget

The optional layer argument can be set to an associated map layer.

Parameters:

• parent (Optional[QWidget] = None)

• layer (Optional[QgsMapLayer] = None)

callout(self) → QgsCallout | None

Returns a new callout, respecting the configuration from the widget.

See also

setCallout()

Return type:

Optional[QgsCallout]

signal calloutChanged

Emitted when the callout defined by the widget changes

context(self) → QgsSymbolWidgetContext

Returns the context in which the widget is shown, e.g., the associated map canvas and expression contexts.

See also

setContext()

Return type:

QgsSymbolWidgetContext

geometryType(self) → Qgis.GeometryType

Returns the geometry type for the objects associated with the callouts.

If the type is Qgis.GeometryType.Unknown then an attempt will be made to deduce the type from the associated map layer.

See also

setGeometryType()

Return type:

Qgis.GeometryType

setCallout(self, callout: QgsCallout | None)

Sets the widget state to match the specified callout.

Ownership is not transferred.

See also

callout()

Parameters:

callout (Optional[QgsCallout])

setContext(self, context: QgsSymbolWidgetContext)

Sets the context in which the widget is shown, e.g., the associated map canvas and expression contexts.

See also

context()

Parameters:

context (QgsSymbolWidgetContext)

setGeometryType(self, type: Qgis.GeometryType)

Sets the geometry type for the objects associated with the callouts.

If type is Qgis.GeometryType.Unknown then an attempt will be made to deduce the type from the associated map layer.

See also

geometryType()

Parameters:

type (Qgis.GeometryType)
