Class: QgsRasterBandComboBox

A combobox widget which displays the bands present in a raster layer.

QgsRasterBandComboBox in the collapsed state

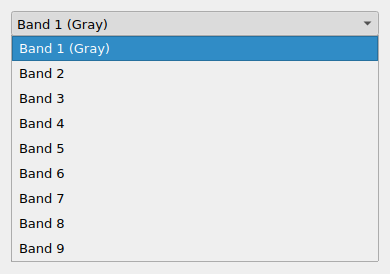

QgsRasterBandComboBox in the expanded state

List of all members, including inherited members

Class Hierarchy

Base classes

QComboBox
QWidget
QObject
QPaintDevice

Methods

currentBand	Returns the current band number selected in the combobox, or -1 if no band is selected.
isShowingNotSetOption	Returns True if the combo box is showing the "not set" option.
layer	Returns the layer currently associated with the combobox.
setBand	Sets the current band number selected in the combobox.
setLayer	Sets the raster layer for which the bands are listed in the combobox.
setShowNotSetOption	Sets whether the combo box should show the "not set" option.

Static Methods

displayBandName

Returns a user-friendly band name for the specified band.

Signals

bandChanged

Emitted when the currently selected band changes.

class qgis.gui.QgsRasterBandComboBox

Bases: QComboBox

__init__(parent: QWidget | None = None)

Constructor for QgsRasterBandComboBox.

Parameters:

parent (Optional[QWidget] = None)

signal bandChanged(band: int)

Emitted when the currently selected band changes.

Parameters:

band (int)

currentBand(self) → int

Returns the current band number selected in the combobox, or -1 if no band is selected.

See also

setBand()

Return type:

int

static displayBandName(provider: QgsRasterDataProvider | None, band: int) → str

Returns a user-friendly band name for the specified band.

Parameters:

• provider (Optional[QgsRasterDataProvider])

• band (int)

Return type:

str

isShowingNotSetOption(self) → bool

Returns True if the combo box is showing the “not set” option.

See also

setShowNotSetOption()

Return type:

bool

layer(self) → QgsRasterLayer | None

Returns the layer currently associated with the combobox.

See also

setLayer()

Return type:

Optional[QgsRasterLayer]

setBand(self, band: int)

Sets the current band number selected in the combobox.

See also

band()

Parameters:

band (int)

setLayer(self, layer: QgsMapLayer | None)

Sets the raster layer for which the bands are listed in the combobox. If no layer is set or a non-raster layer is set then the combobox will be empty.

See also

layer()

Parameters:

layer (Optional[QgsMapLayer])

setShowNotSetOption(self, show: bool, string: str | None = '')

Sets whether the combo box should show the “not set” option. Optionally the built in “not set” text can be overridden by specifying a string.

See also

setShowNotSetOption()

Parameters:

• show (bool)

• string (Optional[str] = '')
