Class: QgsSvgSelectorWidget¶

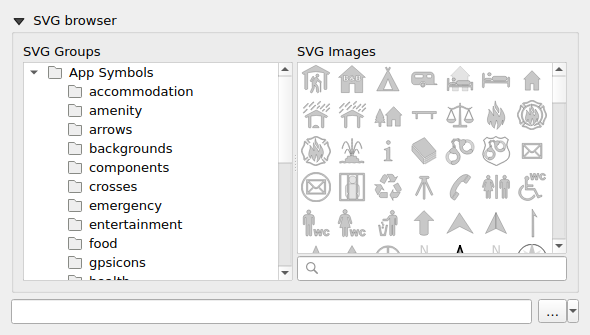

A widget allowing selection of an SVG file, and configuration of SVG related parameters.

Class Hierarchy¶

Base classes¶

QWidget
QObject
QPaintDevice

Methods

`allowParamerters`	Returns if the group box to fill parameters is visible
`allowParameters`	Returns if the group box to fill parameters is visible
`browserVisible`	Returns if the SVG browser should be visible
`currentSvgPath`
`initParametersModel`	Initialize the parameters model so the context and the layer are referenced.
`populateList`
`propertyOverrideToolButton`	Returns the property override tool button of the file line edit
`setAllowParameters`	Defines if the group box to fill parameters is visible
`setBrowserVisible`	Defines if the SVG browser should be visible
`setSvgParameters`	Sets the dynamic parameters
`setSvgPath`	Accepts absolute paths
`sourceLineEdit`	Returns the source line edit

Signals

`svgParametersChanged`	Emitted when the parameters have changed
`svgSelected`	Emitted when an SVG is selected in the widget.

class qgis.gui.QgsSvgSelectorWidget[source]¶

Bases: QWidget

__init__(parent: QWidget | None = None)

Constructor for QgsSvgSelectorWidget

Parameters:: parent (Optional[QWidget] = None)

allowParamerters(self) → bool[source]¶

Returns if the group box to fill parameters is visible

Added in version 3.18.

Deprecated since version 3.40: Use allowParameters().

Return type:: bool

allowParameters(self) → bool[source]¶

Returns if the group box to fill parameters is visible

Added in version 3.38.

Return type:: bool

browserVisible(self) → bool[source]¶

Returns if the SVG browser should be visible

Added in version 3.20.

Return type:: bool

currentSvgPath(self) → str[source]¶

Return type:: str

initParametersModel(self, generator: QgsExpressionContextGenerator | None, layer: QgsVectorLayer | None = None)[source]¶

Initialize the parameters model so the context and the layer are referenced.

Added in version 3.18.

Parameters:

generator (Optional[QgsExpressionContextGenerator])
layer (Optional[QgsVectorLayer] = None)

populateList(self)[source]¶

propertyOverrideToolButton(self) → QgsPropertyOverrideButton | None[source]¶

Returns the property override tool button of the file line edit

Added in version 3.20.

Return type:: Optional[QgsPropertyOverrideButton]

setAllowParameters(self, allow: bool)[source]¶

Defines if the group box to fill parameters is visible

Added in version 3.18.

Parameters:: allow (bool)

setBrowserVisible(self, visible: bool)[source]¶

Defines if the SVG browser should be visible

Added in version 3.20.

Parameters:: visible (bool)

setSvgParameters(self, parameters: Dict[str | None, QgsProperty])[source]¶

Sets the dynamic parameters

Added in version 3.18.

Parameters:: parameters (Dict[Optional[str], QgsProperty])

setSvgPath(self, svgPath: str | None)[source]¶

Accepts absolute paths

Parameters:: svgPath (Optional[str])

sourceLineEdit(self) → QgsPictureSourceLineEditBase | None[source]¶

Returns the source line edit

Added in version 3.16.

Return type:: Optional[QgsPictureSourceLineEditBase]

signal svgParametersChanged(parameters: Dict[str, QgsProperty])[source]¶

Emitted when the parameters have changed

Added in version 3.18.

Parameters:: parameters (Dict[str, QgsProperty])

signal svgSelected(path: str)[source]¶

Emitted when an SVG is selected in the widget.

Parameters:: path (str)
