Class: QgsRasterTransparencyWidget

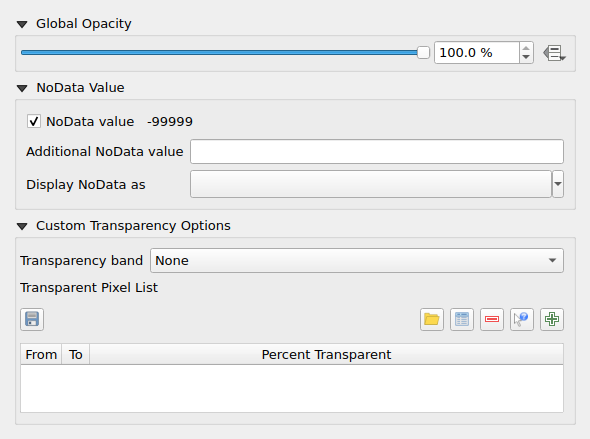

Widget to control a layers transparency and related options

QgsRasterTransparencyWidget

QgsRasterTransparencyWidget

Class Hierarchy

Inheritance diagram of qgis.gui.QgsRasterTransparencyWidget

Base classes

QgsMapLayerConfigWidget

A panel widget that can be shown in the map style dock

QgsPanelWidget

Base class for any widget that can be shown as a inline panel

QWidget

QObject

QPaintDevice

Methods

apply

Apply any changes on the widget to the set layer.

createExpressionContext

pixelSelectorTool

Returns the (possibly None) map pixel selector tool.

setContext

Sets the context in which the dialog is shown, e.g., the associated map canvas and expression contexts.

syncToLayer

Sync the widget state to the layer set for the widget.

class qgis.gui.QgsRasterTransparencyWidget[source]

Bases: QgsMapLayerConfigWidget

__init__(layer: QgsRasterLayer | None, canvas: QgsMapCanvas | None, parent: QWidget | None = None)

Widget to control a layers transparency and related options

Parameters:
apply(self)[source]

Apply any changes on the widget to the set layer.

createExpressionContext(self) QgsExpressionContext[source]
Return type:

QgsExpressionContext

pixelSelectorTool(self) QgsMapToolEmitPoint | None[source]

Returns the (possibly None) map pixel selector tool.

Added in version 3.22.

Return type:

Optional[QgsMapToolEmitPoint]

setContext(self, context: QgsSymbolWidgetContext)[source]

Sets the context in which the dialog is shown, e.g., the associated map canvas and expression contexts.

Added in version 3.22.

Parameters:

context (QgsSymbolWidgetContext)

syncToLayer(self)[source]

Sync the widget state to the layer set for the widget.
