Class: QgsLayoutItemComboBox

The QgsLayoutItemComboBox class is a combo box which displays items of a matching type from a layout.

QgsLayoutItemComboBox in the collapsed state

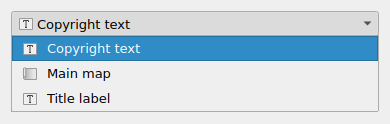

QgsLayoutItemComboBox in the expanded state

Class Hierarchy

Base classes

QComboBox
QWidget
QObject
QPaintDevice

Methods

allowEmptyItem	Returns True if the model includes the empty item choice.
currentItem	Returns the item currently selected in the combo box.
currentLayout	Returns the current layout containing the items shown in the combo box.
exceptedItemList	Returns the list of specific items excluded from the combo box.
item	Returns the item currently shown at the specified index within the combo box.
itemFlags	Returns the layout item flags used for filtering the available items.
itemType	Returns the filter for the item types to show in the combo box.
setAllowEmptyItem	Sets whether an optional empty layout item is present in the combobox.
setCurrentLayout	Sets the layout containing the items to list in the combo box.
setExceptedItemList	Sets a list of specific items to exclude from the combo box.
setItem	Sets the currently selected item in the combo box.
setItemFlags	Sets layout item flags to use for filtering the available items.
setItemType	Sets a filter for the item type to show in the combo box.

Signals

itemChanged

Emitted whenever the currently selected item changes

class qgis.gui.QgsLayoutItemComboBox

Bases: QComboBox

__init__(parent: QWidget | None = None, layout: QgsLayout | None = None)

QgsLayoutItemComboBox creates a combo box to display a list of items in a layout. The items can optionally be filtered by type. If layout is not set, no items will be shown until setCurrentLayout() is called

Parameters:

• parent (Optional[QWidget] = None)

• layout (Optional[QgsLayout] = None)

allowEmptyItem(self) → bool

Returns True if the model includes the empty item choice.

See also

setAllowEmptyItem()

Added in version 3.8.

Return type:

bool

currentItem(self) → QgsLayoutItem | None

Returns the item currently selected in the combo box.

Return type:

Optional[QgsLayoutItem]

currentLayout(self) → QgsLayout | None

Returns the current layout containing the items shown in the combo box.

See also

setCurrentLayout()

Return type:

Optional[QgsLayout]

exceptedItemList(self) → List[QgsLayoutItem]

Returns the list of specific items excluded from the combo box.

See also

setExceptedItemList()

Return type:

List[QgsLayoutItem]

item(self, index: int) → QgsLayoutItem | None

Returns the item currently shown at the specified index within the combo box.

See also

currentItem()

Parameters:

index (int)

Return type:

Optional[QgsLayoutItem]

signal itemChanged(item: QgsLayoutItem)

Emitted whenever the currently selected item changes

Parameters:

item (QgsLayoutItem)

itemFlags(self) → QgsLayoutItem.Flags

Returns the layout item flags used for filtering the available items.

Returns None if no flag based filtering is occurring.

See also

setItemFlags()

Added in version 3.16.

Return type:

QgsLayoutItem.Flags

itemType(self) → QgsLayoutItemRegistry.ItemType

Returns the filter for the item types to show in the combo box.

See also

setItemType()

Return type:

QgsLayoutItemRegistry.ItemType

setAllowEmptyItem(self, allowEmpty: bool)

Sets whether an optional empty layout item is present in the combobox.

See also

allowEmptyItem()

Added in version 3.8.

Parameters:

allowEmpty (bool)

setCurrentLayout(self, layout: QgsLayout | None)

Sets the layout containing the items to list in the combo box.

See also

currentLayout()

Parameters:

layout (Optional[QgsLayout])

setExceptedItemList(self, exceptList: Iterable[QgsLayoutItem])

Sets a list of specific items to exclude from the combo box.

See also

exceptedItemList()

Parameters:

exceptList (Iterable[QgsLayoutItem])

setItem(self, item: QgsLayoutItem | None)

Sets the currently selected item in the combo box.

Parameters:

item (Optional[QgsLayoutItem])

setItemFlags(self, flags: QgsLayoutItem.Flags | QgsLayoutItem.Flag)

Sets layout item flags to use for filtering the available items.

Set flags to None to clear the flag based filtering.

See also

itemFlags()

Added in version 3.16.

Parameters:

flags (Union[QgsLayoutItem.Flags, QgsLayoutItem.Flag])

setItemType(self, itemType: QgsLayoutItemRegistry.ItemType)

Sets a filter for the item type to show in the combo box.

Parameters:

itemType (QgsLayoutItemRegistry.ItemType) – type of items to show. Set to QgsLayoutItemRegistry.LayoutItem to show all items.

See also

itemType()
