Class: QgsLabelingEngineRulesDialog

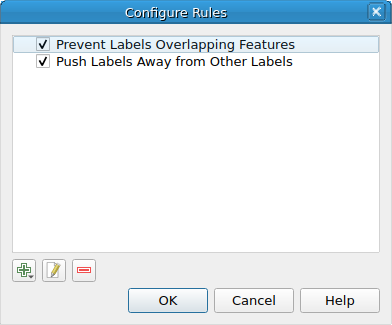

A dialog which allows configuration of a list of labeling engine rules.

This dialog allows users to add, remove, and edit the properties of a list of QgsAbstractLabelingEngineRule objects.

See also

QgsLabelingEngineRulesWidget

Added in version 3.40.

QgsLabelingEngineRulesDialog

Class Hierarchy

Base classes

QDialog
QWidget
QObject
QPaintDevice

Methods

rules	Returns the rules shown in the dialog.
setRules	Sets the rules to show in the dialog.

class qgis.gui.QgsLabelingEngineRulesDialog

Bases: QDialog

__init__(parent: QWidget | None = None, flags: Qt.WindowFlags | Qt.WindowType = QgsGuiUtils.ModalDialogFlags)

Constructor for QgsLabelingEngineRulesDialog.

Parameters:

• parent (Optional[QWidget] = None) – parent widget

• flags (Union[Qt.WindowFlags, Qt.WindowType] = QgsGuiUtils.ModalDialogFlags) – window flags for dialog

rules(self) → List[QgsAbstractLabelingEngineRule]

Returns the rules shown in the dialog.

The caller takes ownership of all returned rules.

Return type:

List[QgsAbstractLabelingEngineRule]

setRules(self, rules: Iterable[QgsAbstractLabelingEngineRule])

Sets the rules to show in the dialog.

Ownership is not transferred, an internal copy will be made.

Parameters:

rules (Iterable[QgsAbstractLabelingEngineRule])
