Class: QgsEffectStackPropertiesDialog

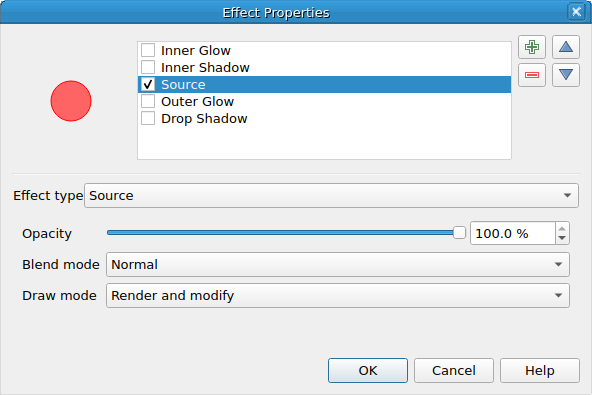

A dialog for modifying the properties of a QgsEffectStack, including adding and reordering effects within the stack.

See also

QgsEffectStack

QgsEffectStackPropertiesDialog

QgsEffectStackPropertiesDialog

Class Hierarchy

Inheritance diagram of qgis.gui.QgsEffectStackPropertiesDialog

Base classes

QgsDialog

A generic dialog with layout and button box

QDialog

QWidget

QObject

QPaintDevice

Methods

setPreviewPicture

Sets the picture to use for effect previews for the dialog

stack

Returns effect stack attached to the dialog

class qgis.gui.QgsEffectStackPropertiesDialog[source]

Bases: QgsDialog

__init__(stack: QgsEffectStack | None, parent: QWidget | None = None, f: Qt.WindowFlags | Qt.WindowType = Qt.WindowFlags())

QgsEffectStackPropertiesDialog constructor

Parameters:
  • stack (Optional[QgsEffectStack]) – QgsEffectStack to modify in the dialog

  • parent (Optional[QWidget] = None) – parent widget

  • f (Union[Qt.WindowFlags, Qt.WindowType] = Qt.WindowFlags()) – window flags

setPreviewPicture(self, picture: QPicture)[source]

Sets the picture to use for effect previews for the dialog

Parameters:

picture (QPicture) – preview picture

stack(self) QgsEffectStack | None[source]

Returns effect stack attached to the dialog

Return type:

Optional[QgsEffectStack]

Returns:

QgsEffectStack modified by the dialog
