Class: QgsDashSpaceWidget

A widget to enter a custom dash space pattern for lines

Added in version 3.8.

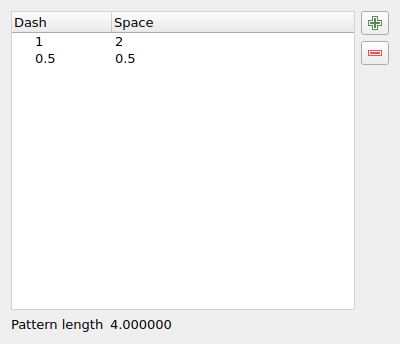

QgsDashSpaceWidget showing a custom dash pattern

QgsDashSpaceWidget showing a custom dash pattern

Class Hierarchy

Inheritance diagram of qgis.gui.QgsDashSpaceWidget

Base classes

QgsPanelWidget

Base class for any widget that can be shown as a inline panel

QWidget

QObject

QPaintDevice

Methods

dashDotVector

Returns the dash pattern as a list of numbers

setUnit

Sets the unit type used for the dash space pattern (used to update interface labels)

class qgis.gui.QgsDashSpaceWidget[source]

Bases: QgsPanelWidget

__init__(vectorPattern: Iterable[float], parent: QWidget | None = None)

Constructor for QgsDashSpaceWidget

Parameters:
  • vectorPattern (Iterable[float])

  • parent (Optional[QWidget] = None)

dashDotVector(self) List[float]

Returns the dash pattern as a list of numbers

Return type:

List[float]

setUnit(self, unit: Qgis.RenderUnit)[source]

Sets the unit type used for the dash space pattern (used to update interface labels)

Parameters:

unit (Qgis.RenderUnit) – the unit type
