Class: QgsCptCityColorRampDialog

A dialog which allows users to modify the properties of a QgsCptCityColorRamp.

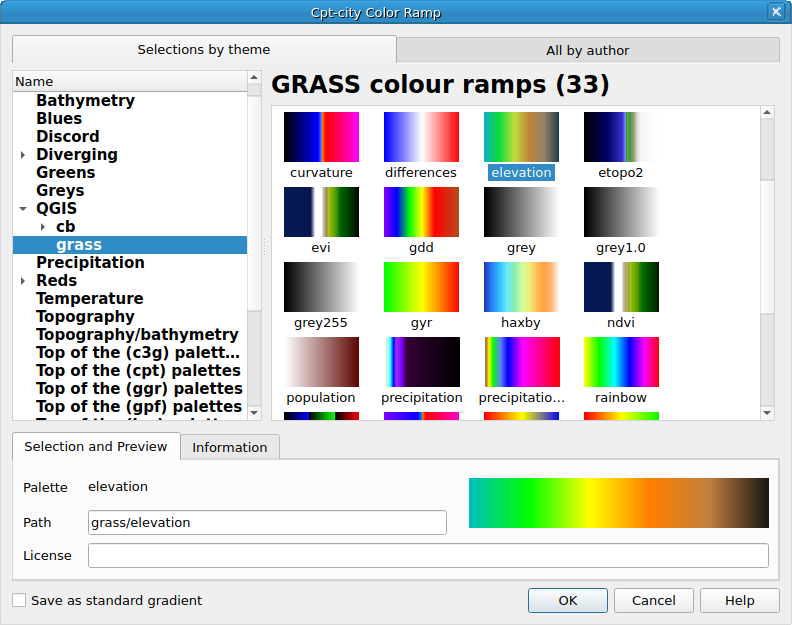

QgsCptCityColorRampDialog showing the 'grass/elevation' color ramp

QgsCptCityColorRampDialog showing the ‘grass/elevation’ color ramp

Class Hierarchy

Inheritance diagram of qgis.gui.QgsCptCityColorRampDialog

Base classes

QDialog

QWidget

QObject

QPaintDevice

Methods

buttonBox

Returns a reference to the dialog's button box.

ramp

Returns a color ramp representing the current settings from the dialog.

saveAsGradientRamp

Returns True if the ramp should be converted to a QgsGradientColorRamp.

selectedName

Returns the name of the ramp currently selected in the dialog.

setRamp

Sets the color ramp to show in the dialog.

Signals

changed

Emitted when the dialog settings change

class qgis.gui.QgsCptCityColorRampDialog[source]

Bases: QDialog

__init__(ramp: QgsCptCityColorRamp, parent: QWidget | None = None)

Constructor for QgsCptCityColorRampDialog.

Parameters:
  • ramp (QgsCptCityColorRamp) – initial ramp to show in dialog

  • parent (Optional[QWidget] = None) – parent widget

buttonBox(self) QDialogButtonBox | None[source]

Returns a reference to the dialog’s button box.

Added in version 3.10.

Return type:

Optional[QDialogButtonBox]

signal changed[source]

Emitted when the dialog settings change

ramp(self) QgsCptCityColorRamp[source]

Returns a color ramp representing the current settings from the dialog.

See also

setRamp()

Return type:

QgsCptCityColorRamp

saveAsGradientRamp(self) bool[source]

Returns True if the ramp should be converted to a QgsGradientColorRamp.

Return type:

bool

selectedName(self) str[source]

Returns the name of the ramp currently selected in the dialog.

Return type:

str

setRamp(self, ramp: QgsCptCityColorRamp)[source]

Sets the color ramp to show in the dialog.

Parameters:

ramp (QgsCptCityColorRamp) – color ramp

See also

ramp()
