Class: QgsCodeEditor

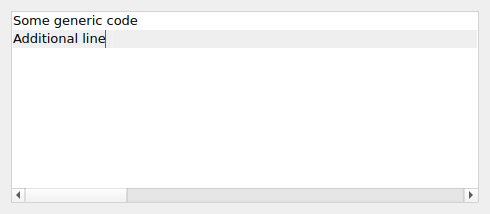

A text editor based on QScintilla2.

Note

may not be available in Python bindings, depending on platform support

QgsCodeEditor

Class Hierarchy

Base classes

QsciScintilla
QsciScintillaBase
QAbstractScrollArea
QFrame
QWidget
QObject
QPaintDevice

Subclasses

QgsCodeEditorCSS	A CSS editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorExpression	A QGIS expression editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorHTML	A HTML editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorJavascript	A Javascript editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorJson	A JSON editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorPython	A Python editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorR	A R stats code editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorSQL	A SQL editor based on QScintilla2. Adds syntax highlighting and code autocompletion.
QgsCodeEditorShell	A shell script code editor based on QScintilla2. Adds syntax highlighting and code autocompletion.

Enums

Flag	Flags controlling behavior of code editor
MarginRole	Margin roles.
Mode	Code editor modes.

Methods

addWarning	Adds a warning message and indicator to the specified a lineNumber.
checkSyntax	Applies syntax checking to the editor.
clearPersistentHistory	Clears the entire persistent history of commands run in the editor.
clearSessionHistory	Clears the history of commands run in the current session.
clearWarnings	Clears all warning messages from the editor.
foldingVisible	Returns True if the folding controls are visible in the editor.
history	Returns the list of commands previously executed in the editor.
initializeLexer	Called when the dialect specific code lexer needs to be initialized (or reinitialized).
insertText	Insert text at cursor position, or replace any selected text if user has made a selection.
interpreter	Returns the attached code interpreter, or None if not set.
isCursorOnLastLine	Returns True if the cursor is on the last line of the document.
language	Returns the associated scripting language.
languageCapabilities	Returns the associated scripting language capabilities.
lexerColor	Returns the color to use in the lexer for the specified role.
lexerFont	Returns the font to use in the lexer.
lineNumbersVisible	Returns whether line numbers are visible in the editor.
linearPosition	Convenience function to return the cursor position as a linear index
marginVisible	Returns whether margins are in a visible state
mode	Returns the code editor mode.
moveCursorToEnd	Moves the cursor to the end of the document and scrolls to ensure it is visible.
moveCursorToStart	Moves the cursor to the start of the document and scrolls to ensure it is visible.
populateContextMenu	Called when the context menu for the widget is about to be shown, after it has been fully populated with the standard actions created by the base class.
reformatCode	Applies code reformatting to the editor.
reformatCodeString	Applies code reformatting to a string and returns the result.
removeHistoryCommand	Removes the command at the specified index from the history of the code editor.
runCommand	Runs a command in the editor.
runPostLexerConfigurationTasks	Performs tasks which must be run after a lexer has been set for the widget.
selectionEnd	Convenience function to return the end of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.
selectionStart	Convenience function to return the start of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.
setFoldingVisible	Set whether the folding controls are visible in the editor.
setHistoryFilePath	Sets the file path to use for recording and retrieving previously executed commands.
setInterpreter	Sets an attached code interpreter for executing commands when the editor is in the QgsCodeEditor.Mode.CommandInput mode.
setLineNumbersVisible	Sets whether line numbers should be visible in the editor.
setLinearPosition	Convenience function to set the cursor position as a linear index
setLinearSelection	Convenience function to set the selection using linear indexes
setMarginVisible	Set margin visible state
setTitle	Set the widget title
showHistory	Shows the command history dialog.
showMessage	Shows a user facing message (eg a warning message).
showNextCommand	Shows the next command from the session in the editor.
showPreviousCommand	Shows the previous command from the session in the editor.
toggleComment	Toggle comment for the selected text.
updatePrompt	Triggers an update of the interactive prompt part of the editor.
updateSoftHistory	Updates the soft history by storing the current editor text in the history.
wrapPosition	Returns the linear position of the start of the last wrapped part for the specified line, or for the current line if line = -1 If wrapping is disabled, returns -1 instead
writeHistoryFile	Stores the commands executed in the editor to the persistent history file.

Static Methods

color	Returns the color to use in the editor for the specified role.
defaultColor	Returns the default color for the specified role.
getMonospaceFont	Returns the monospaced font to use for code editors.
isFixedPitch	Returns True if a font is a fixed pitch font.
languageToString	Returns a user-friendly, translated name of the specified script language.
setColor	Sets the color to use in the editor for the specified role.

Signals

persistentHistoryCleared	Emitted when the persistent history of commands run in the editor is cleared.
sessionHistoryCleared	Emitted when the history of commands run in the current session is cleared.

Attributes

SEARCH_RESULT_INDICATOR

Indicator index for search results

class qgis.gui.QgsCodeEditor

Bases: QsciScintilla

__init__(parent: QWidget | None = None, title: str | None = '', folding: bool = False, margin: bool = False, flags: QgsCodeEditor.Flags | QgsCodeEditor.Flag = QgsCodeEditor.Flags(), mode: QgsCodeEditor.Mode = QgsCodeEditor.Mode.ScriptEditor)

Construct a new code editor.

Parameters:

• parent (Optional[QWidget] = None) – The parent QWidget

• title (Optional[str] = '') – The title to show in the code editor dialog

• folding (bool = False) – False: Enable folding for code editor (deprecated, use flags instead)

• margin (bool = False) – False: Enable margin for code editor (deprecated)

• flags (Union[QgsCodeEditor.Flags, QgsCodeEditor.Flag] = QgsCodeEditor.Flags()) – flags controlling behavior of code editor (since QGIS 3.28)

• mode (QgsCodeEditor.Mode = QgsCodeEditor.Mode.ScriptEditor) – code editor mode (since QGIS 3.30)

class Flag(*values)

Bases: IntEnum

Flags controlling behavior of code editor

Added in version 3.28.

• CodeFolding: Indicates that code folding should be enabled for the editor

• ImmediatelyUpdateHistory: Indicates that the history file should be immediately updated whenever a command is executed, instead of the default behavior of only writing the history on widget close

  Added in version 3.32.

CodeFolding = 1

ImmediatelyUpdateHistory = 2

class Flags

class Flags(f: QgsCodeEditor.Flags | QgsCodeEditor.Flag)

class Flags(a0: QgsCodeEditor.Flags)

Bases: object

class MarginRole(*values)

Bases: IntEnum

Margin roles.

This enum contains the roles which the different numbered margins are used for.

Added in version 3.16.

• LineNumbers: Line numbers

• ErrorIndicators: Error indicators

• FoldingControls: Folding controls

class Mode(*values)

Bases: IntEnum

Code editor modes.

Added in version 3.30.

• ScriptEditor: Standard mode, allows for display and edit of entire scripts

• OutputDisplay: Read only mode for display of command outputs

• CommandInput: Command input mode

CommandInput = 2

OutputDisplay = 1

ScriptEditor = 0

SEARCH_RESULT_INDICATOR = 34

Indicator index for search results

addWarning(self, lineNumber: int, warning: str | None)

Adds a warning message and indicator to the specified a lineNumber.

See also

clearWarnings()

Added in version 3.16.

Parameters:

• lineNumber (int)

• warning (Optional[str])

checkSyntax(self) → bool

Applies syntax checking to the editor.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.CheckSyntax capability from languageCapabilities().

Added in version 3.32.

Return type:

bool

clearPersistentHistory(self)

Clears the entire persistent history of commands run in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

clearSessionHistory(self)

Clears the history of commands run in the current session.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

clearWarnings(self)

Clears all warning messages from the editor.

See also

addWarning()

Added in version 3.16.

static color(role: QgsCodeEditorColorScheme.ColorRole) → QColor

Returns the color to use in the editor for the specified role.

This color will be the default theme color for the role, unless the user has manually selected a custom color scheme for the editor.

See also

setColor()

Added in version 3.16.

Parameters:

role (QgsCodeEditorColorScheme.ColorRole)

Return type:

QColor

static defaultColor(role: QgsCodeEditorColorScheme.ColorRole, theme: str | None = '') → QColor

Returns the default color for the specified role.

The optional theme argument can be used to specify a color theme. A blank theme indicates the default color scheme.

Available themes are stored in QgsCodeEditorColorSchemeRegistry, and can be retrieved via QgsGui.codeEditorColorSchemeRegistry().

Added in version 3.16.

Parameters:

• role (QgsCodeEditorColorScheme.ColorRole)

• theme (Optional[str] = '')

Return type:

QColor

foldingVisible(self) → bool

Returns True if the folding controls are visible in the editor.

See also

setFoldingVisible()

Return type:

bool

static getMonospaceFont() → QFont

Returns the monospaced font to use for code editors.

Added in version 3.16.

Return type:

QFont

history(self) → List[str]

Returns the list of commands previously executed in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

Return type:

List[str]

initializeLexer(self)

Called when the dialect specific code lexer needs to be initialized (or reinitialized).

The default implementation does nothing.

Added in version 3.16.

insertText(self, text: str | None)

Insert text at cursor position, or replace any selected text if user has made a selection.

Parameters:

text (Optional[str]) – The text to be inserted

interpreter(self) → QgsCodeInterpreter | None

Returns the attached code interpreter, or None if not set.

See also

setInterpreter()

Added in version 3.30.

Return type:

Optional[QgsCodeInterpreter]

isCursorOnLastLine(self) → bool

Returns True if the cursor is on the last line of the document.

Added in version 3.28.

Return type:

bool

static isFixedPitch(font: QFont) → bool

Returns True if a font is a fixed pitch font.

Parameters:

font (QFont)

Return type:

bool

language(self) → Qgis.ScriptLanguage

Returns the associated scripting language.

Added in version 3.30.

Return type:

Qgis.ScriptLanguage

languageCapabilities(self) → Qgis.ScriptLanguageCapabilities

Returns the associated scripting language capabilities.

Added in version 3.32.

Return type:

Qgis.ScriptLanguageCapabilities

static languageToString(language: Qgis.ScriptLanguage) → str

Returns a user-friendly, translated name of the specified script language.

Added in version 3.30.

Parameters:

language (Qgis.ScriptLanguage)

Return type:

str

lexerColor(self, role: QgsCodeEditorColorScheme.ColorRole) → QColor

Returns the color to use in the lexer for the specified role.

Added in version 3.16.

Parameters:

role (QgsCodeEditorColorScheme.ColorRole)

Return type:

QColor

lexerFont(self) → QFont

Returns the font to use in the lexer.

Added in version 3.16.

Return type:

QFont

lineNumbersVisible(self) → bool

Returns whether line numbers are visible in the editor.

See also

setLineNumbersVisible()

Added in version 3.16.

Return type:

bool

linearPosition(self) → int

Convenience function to return the cursor position as a linear index

Added in version 3.36.

Return type:

int

marginVisible(self) → bool

Returns whether margins are in a visible state

Deprecated since version 3.40: Use base class methods for individual margins instead, or lineNumbersVisible().

Return type:

bool

mode(self) → QgsCodeEditor.Mode

Returns the code editor mode.

Added in version 3.30.

Return type:

QgsCodeEditor.Mode

moveCursorToEnd(self)

Moves the cursor to the end of the document and scrolls to ensure it is visible.

Added in version 3.28.

moveCursorToStart(self)

Moves the cursor to the start of the document and scrolls to ensure it is visible.

Added in version 3.28.

signal persistentHistoryCleared

Emitted when the persistent history of commands run in the editor is cleared.

Added in version 3.30.

populateContextMenu(self, menu: QMenu | None)

Called when the context menu for the widget is about to be shown, after it has been fully populated with the standard actions created by the base class.

This method provides an opportunity for subclasses to add additional non-standard actions to the context menu.

Added in version 3.30.

Parameters:

menu (Optional[QMenu])

reformatCode(self)

Applies code reformatting to the editor.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.Reformat capability from languageCapabilities().

Added in version 3.32.

reformatCodeString(self, string: str | None) → str

Applies code reformatting to a string and returns the result.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.Reformat capability from languageCapabilities().

Added in version 3.32.

Parameters:

string (Optional[str])

Return type:

str

removeHistoryCommand(self, index: int)

Removes the command at the specified index from the history of the code editor.

Added in version 3.30.

Parameters:

index (int)

runCommand(self, command: str | None, skipHistory: bool = False)

Runs a command in the editor.

An interpreter() must be set.

Since QGIS 3.32, if skipHistory is True then the command will not be automatically added to the widget’s history.

Added in version 3.30.

Parameters:

• command (Optional[str])

• skipHistory (bool = False)

runPostLexerConfigurationTasks(self)

Performs tasks which must be run after a lexer has been set for the widget.

Added in version 3.16.

selectionEnd(self) → int

Convenience function to return the end of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.

Added in version 3.36.

Return type:

int

selectionStart(self) → int

Convenience function to return the start of the selection as a linear index Contrary to the getSelection method, this method returns the cursor position if no selection is made.

Added in version 3.36.

Return type:

int

signal sessionHistoryCleared

Emitted when the history of commands run in the current session is cleared.

Added in version 3.30.

static setColor(role: QgsCodeEditorColorScheme.ColorRole, color: QColor | Qt.GlobalColor)

Sets the color to use in the editor for the specified role.

This color will be stored as the new default color for the role, to be used for all code editors.

Set color to an invalid QColor in order to clear the stored color value and reset it to the default color.

See also

color()

Added in version 3.16.

Parameters:

• role (QgsCodeEditorColorScheme.ColorRole)

• color (Union[QColor, Qt.GlobalColor])

setFoldingVisible(self, folding: bool)

Set whether the folding controls are visible in the editor.

See also

foldingVisible()

Parameters:

folding (bool)

setHistoryFilePath(self, path: str | None)

Sets the file path to use for recording and retrieving previously executed commands.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

Parameters:

path (Optional[str])

setInterpreter(self, newInterpreter: QgsCodeInterpreter | None)

Sets an attached code interpreter for executing commands when the editor is in the QgsCodeEditor.Mode.CommandInput mode.

See also

interpreter()

Added in version 3.30.

Parameters:

newInterpreter (Optional[QgsCodeInterpreter])

setLineNumbersVisible(self, visible: bool)

Sets whether line numbers should be visible in the editor.

Defaults to False.

See also

lineNumbersVisible()

Added in version 3.16.

Parameters:

visible (bool)

setLinearPosition(self, position: int)

Convenience function to set the cursor position as a linear index

Added in version 3.36.

Parameters:

position (int)

setLinearSelection(self, start: int, end: int)

Convenience function to set the selection using linear indexes

Added in version 3.36.

Parameters:

• start (int)

• end (int)

setMarginVisible(self, margin: bool)

Set margin visible state

Parameters:

margin (bool) – Set margin in the editor

Deprecated since version 3.40: Use base class methods for individual margins instead, or setLineNumbersVisible().

setTitle(self, title: str | None)

Set the widget title

Parameters:

title (Optional[str]) – widget title

showHistory(self)

Shows the command history dialog.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

showMessage(self, title: str | None, message: str | None, level: Qgis.MessageLevel)

Shows a user facing message (eg a warning message).

The default implementation uses QMessageBox.

Added in version 3.32.

Parameters:

• title (Optional[str])

• message (Optional[str])

• level (Qgis.MessageLevel)

showNextCommand(self)

Shows the next command from the session in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

showPreviousCommand(self)

Shows the previous command from the session in the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

toggleComment(self)

Toggle comment for the selected text.

This is only supported for editors which return the Qgis.ScriptLanguageCapability.ToggleComment capability from languageCapabilities().

Added in version 3.32.

updatePrompt(self)

Triggers an update of the interactive prompt part of the editor.

Note

Applies to code editors in the QgsCodeEditor.Mode.CommandInput mode only.

Added in version 3.30.

updateSoftHistory(self)

Updates the soft history by storing the current editor text in the history.

Added in version 3.30.

wrapPosition(self, line: int = -1) → int

Returns the linear position of the start of the last wrapped part for the specified line, or for the current line if line = -1 If wrapping is disabled, returns -1 instead

Added in version 3.40.

Parameters:

line (int = -1)

Return type:

int

writeHistoryFile(self) → bool

Stores the commands executed in the editor to the persistent history file.

Added in version 3.30.

Return type:

bool
