Class: QgsCategorizedSymbolRendererWidget¶

Class Hierarchy¶

`QgsRendererWidget`	Base class for renderer settings widgets.
`QgsPanelWidget`	Base class for any widget that can be shown as a inline panel
QWidget
QObject
QPaintDevice
`QgsExpressionContextGenerator`	Abstract interface for generating an expression context.

Enums

`CustomRole`	Custom model roles.
`CustomRoles`	alias of `CustomRole`

Methods

`addCategories`
`addCategory`
`applyChangeToSymbol`	Applies current symbol to selected categories, or to all categories if none is selected
`applyColorRamp`	Applies the color ramp passed on by the color ramp button
`categoriesDoubleClicked`
`categoryColumnChanged`
`changeCategorizedSymbol`
`changeCategorySymbol`
`changeSelectedSymbols`	Changes the selected symbols alone for the change button, if there is a selection
`currentCategoryRow`	Returns row index for the currently selected category (-1 if on no selection)
`deleteAllCategories`
`deleteCategories`
`matchToSymbols`	Replaces category symbols with the symbols from a style that have a matching name.
`matchToSymbolsFromLibrary`	Replaces category symbols with the symbols from the users' symbol library that have a matching name.
`matchToSymbolsFromXml`	Prompts for selection of an xml file, then replaces category symbols with the symbols from the XML file with a matching name.
`populateCategories`
`rowsMoved`
`selectedCategories`	Returns a list of indexes for the categories under selection
`selectedCategoryList`
`showSymbolLevels`
`updateUiFromRenderer`

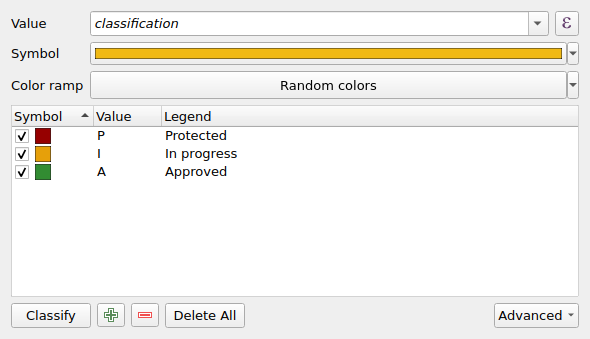

class qgis.gui.QgsCategorizedSymbolRendererWidget(layer: QgsVectorLayer | None, style: QgsStyle | None, renderer: QgsFeatureRenderer | None)[source]¶

class CustomRole(*values)¶

Bases: IntEnum

Custom model roles.

Note

Prior to QGIS 3.36 this was available as QgsCategorizedSymbolRendererWidget.CustomRoles

Added in version 3.36.

Value: Category value

Available as QgsCategorizedSymbolRendererWidget.ValueRole in older QGIS releases.

applyChangeToSymbol(self)[source]¶: Applies current symbol to selected categories, or to all categories if none is selected

applyColorRamp(self)[source]¶: Applies the color ramp passed on by the color ramp button

categoriesDoubleClicked(self, idx: QModelIndex)[source]¶

categoryColumnChanged(self, field: str | None)[source]¶

changeSelectedSymbols(self)[source]¶: Changes the selected symbols alone for the change button, if there is a selection

currentCategoryRow(self) → int[source]¶

Returns row index for the currently selected category (-1 if on no selection)

matchToSymbols(self, style: QgsStyle | None) → int[source]¶

Replaces category symbols with the symbols from a style that have a matching name.

Parameters:: style (Optional[QgsStyle]) – style containing symbols to match with
Return type:: int
Returns:: number of symbols matched
